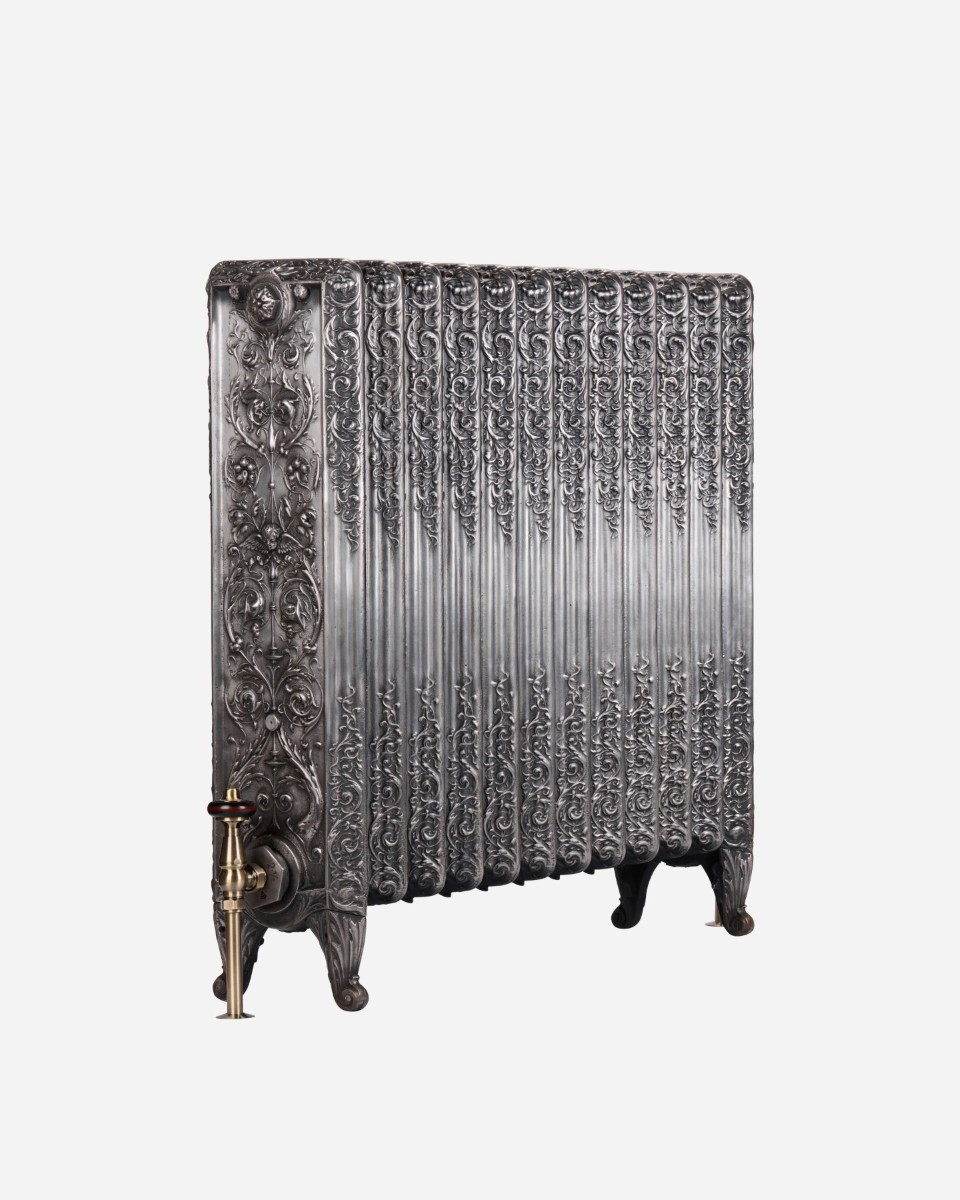

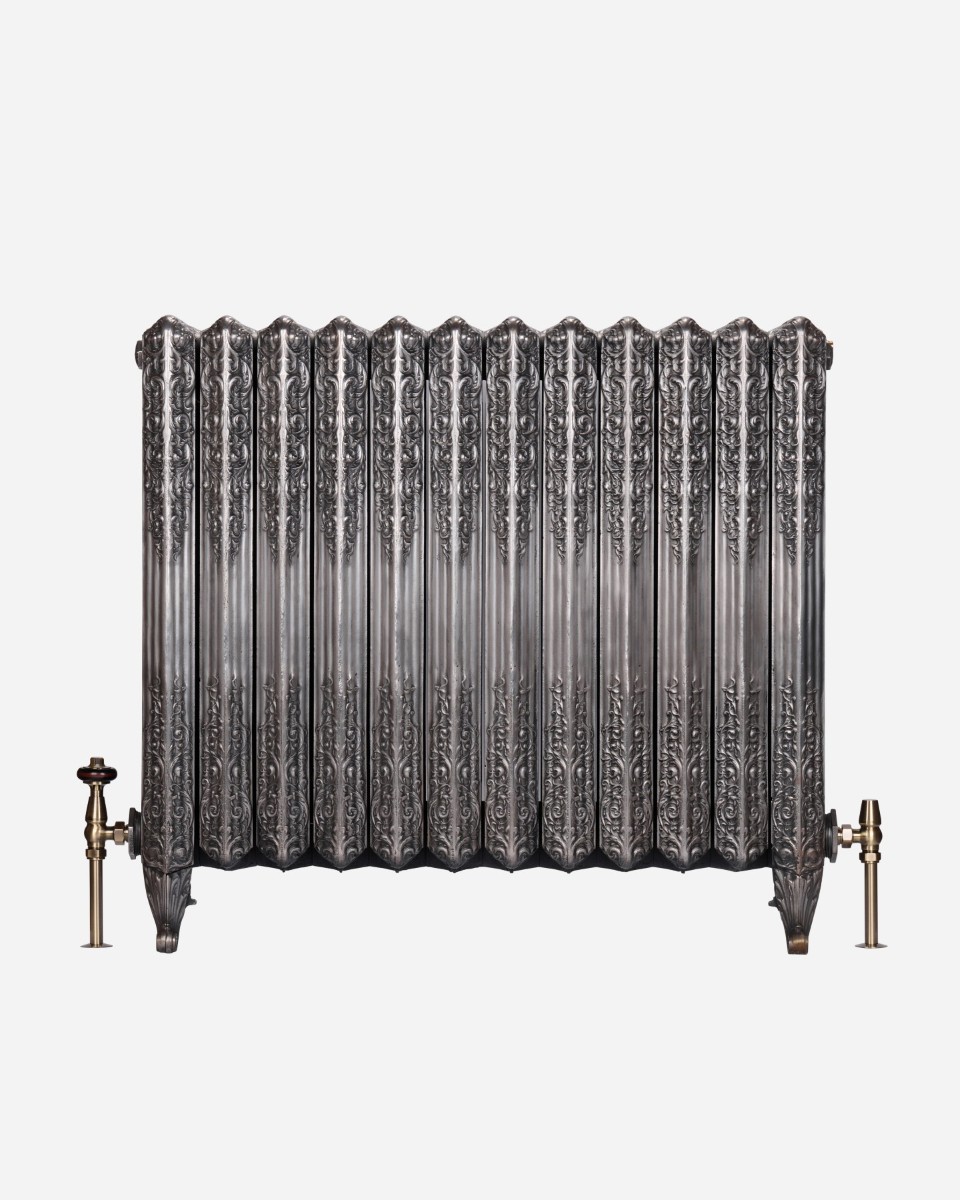

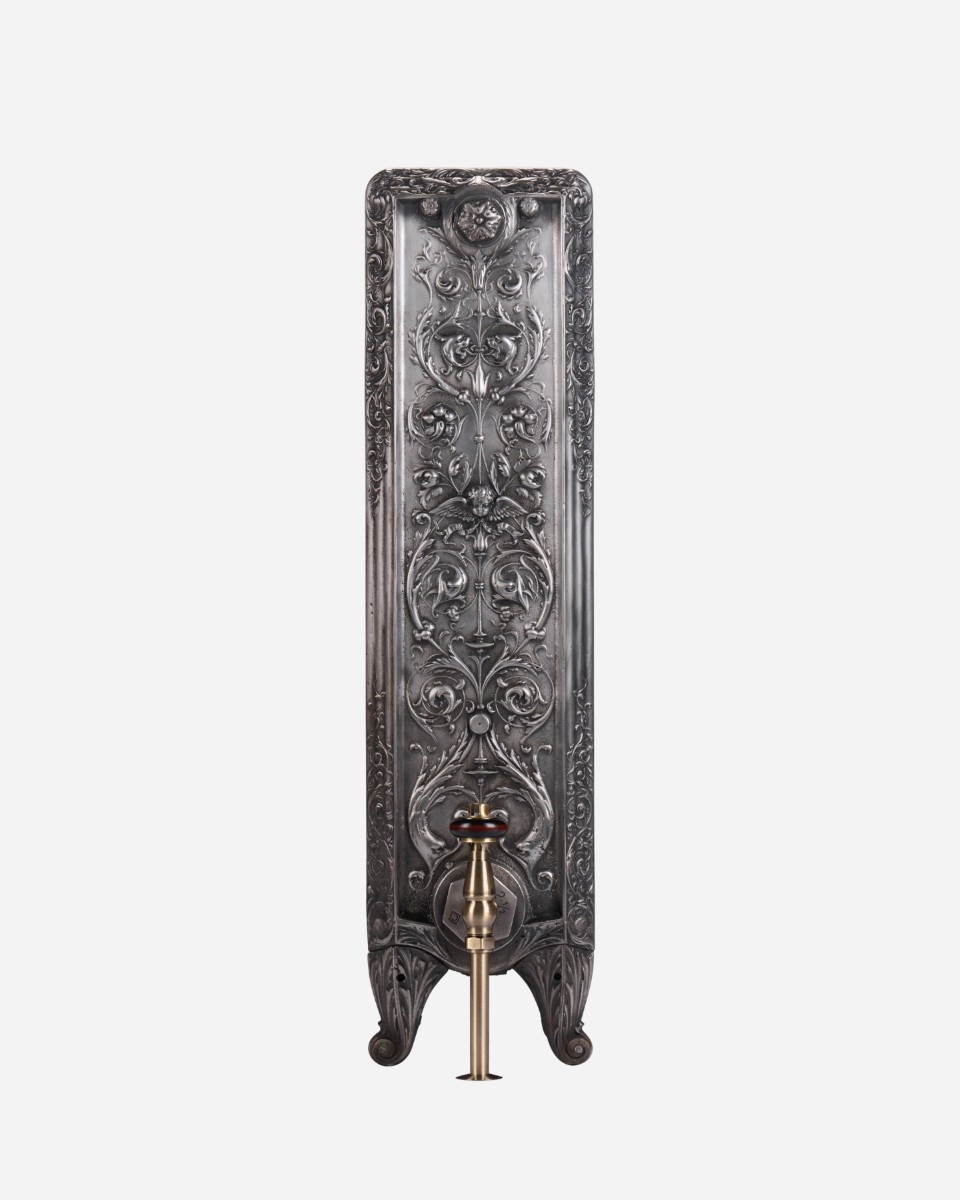

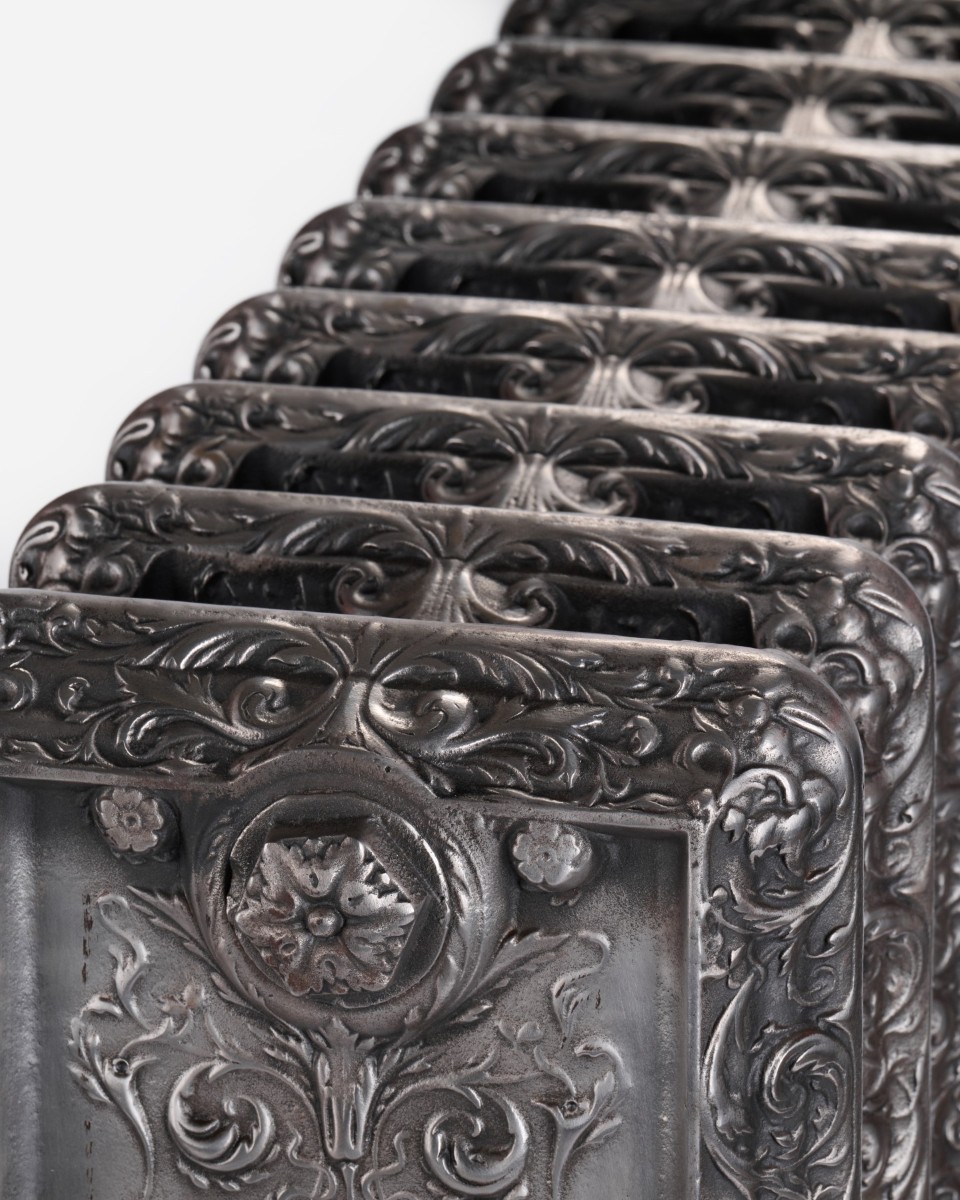

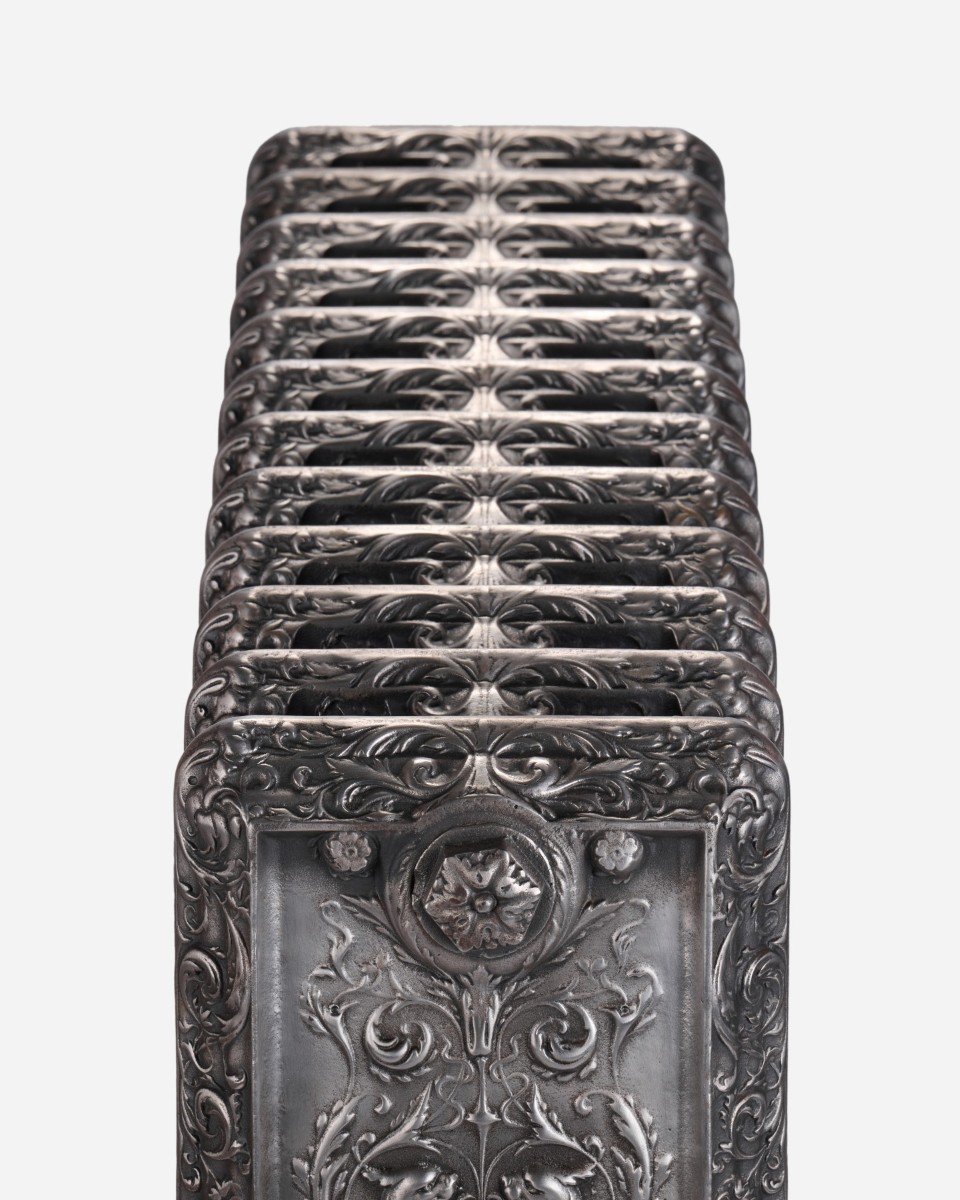

Italian Flue Ornamental 34in – Full Polish, 12 sections
£2,122.80
Out of stock
Designed by the American Radiator Company in the late 1890s, the Italian Flue Ornamental combined the single-column form typical of hospital radiators with highly decorative detailing, making it a rare blend of form and function.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Height With Legs (mm) | 863 |
| Height Without Legs (mm) | 730 |
| Bottom Inlet To Floor (mm) | 114 |
| Max Section Depth (mm) | 216 |
| Mid Section Depth (mm) | 216 |
| Output (ΔT50, W) | 135 |
| Output (ΔT30, W) | 70 |
| Interaxis Distance (mm) | 806 |
| Section Length (mm) | 76 |
| Internal Volume (L) | 3 |
| Empty Leg Section Weight (kg) | 18 |
| Empty Mid Section Weight (kg) | 16.2 |
| Factor, Km | 1.02 |
| Exponent, n | 1.25 |
| Casting Origin | Chicago, USA |
| Heating Medium | Hydronic |
| Construction Types | Threaded nipples |
| Connection Options | BBOE |
Restored & Ready
This radiator is a one-of-one, assembled, tested and finished piece that is available for delivery to your address within seven working days of purchase – skipping our lead time queues.
Additional American Radiator Company Italian Flue Ornamental models can be found here with more flexibility around height, depth, length and finish.
Historic Detail
Patented on October 20th, 1896, the Italian Flue Ornamental predates the Plain version and continued production well into the 1910s.

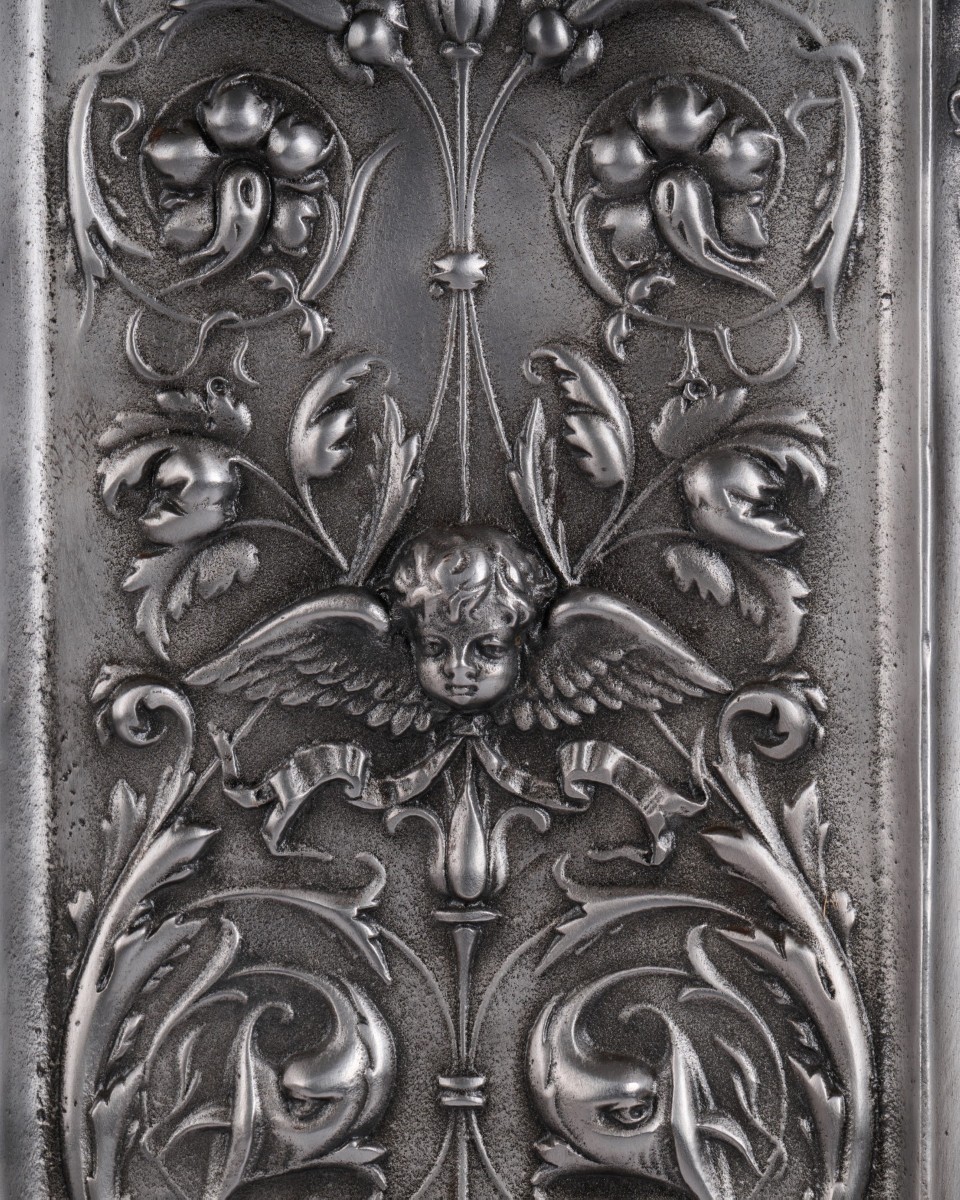

The Italian Flue Ornamental shares similarities with other ARCo models, such as the Verona and Zenith Flue. Its most notable feature is that each section consisted of just one column, unlike the multi-columned ornate models like the National or Rococo. In keeping with its Italian inspiration, this design featured lavish royal patterns and a central Cupid-inspired cherub, adding a romantic and classic touch to its aesthetic.
