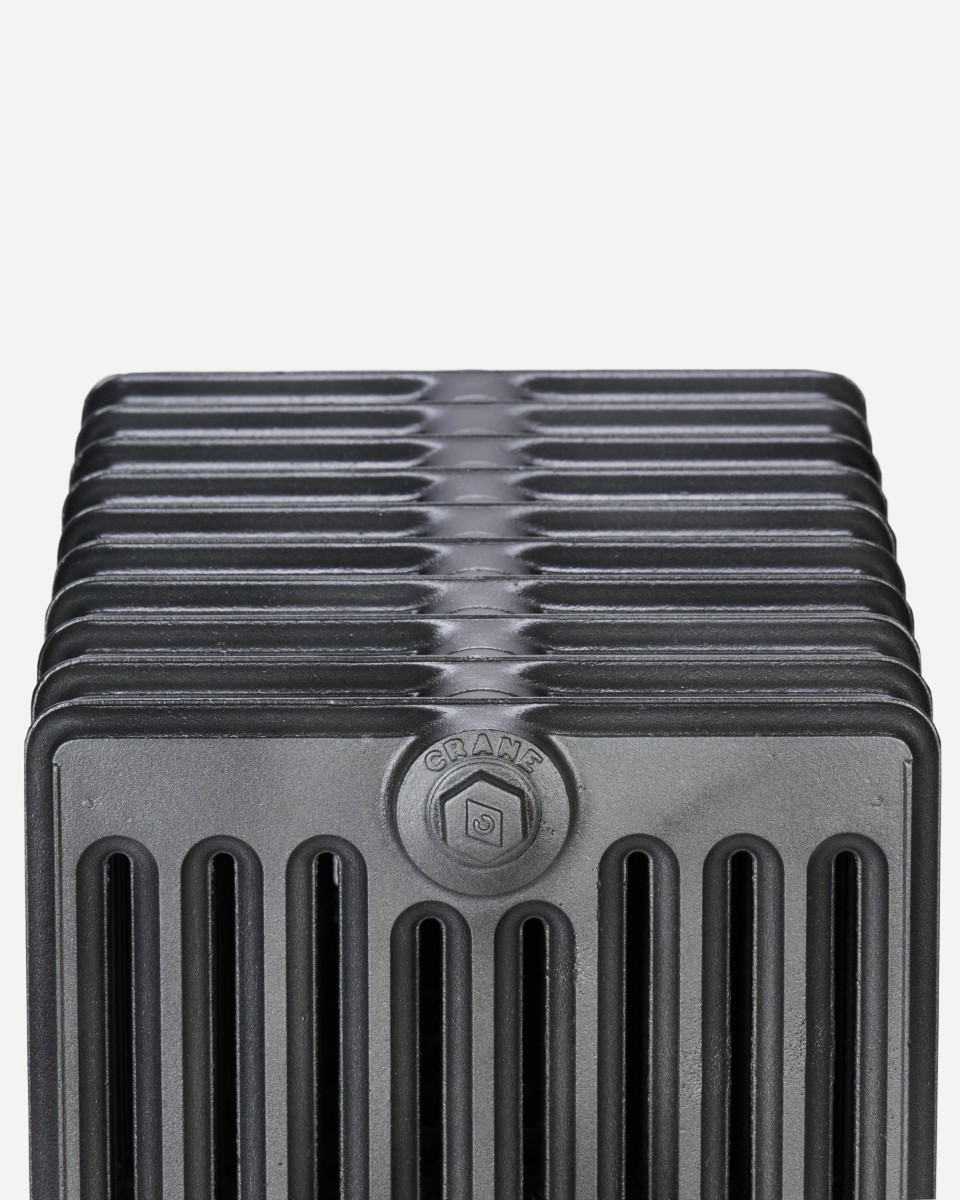

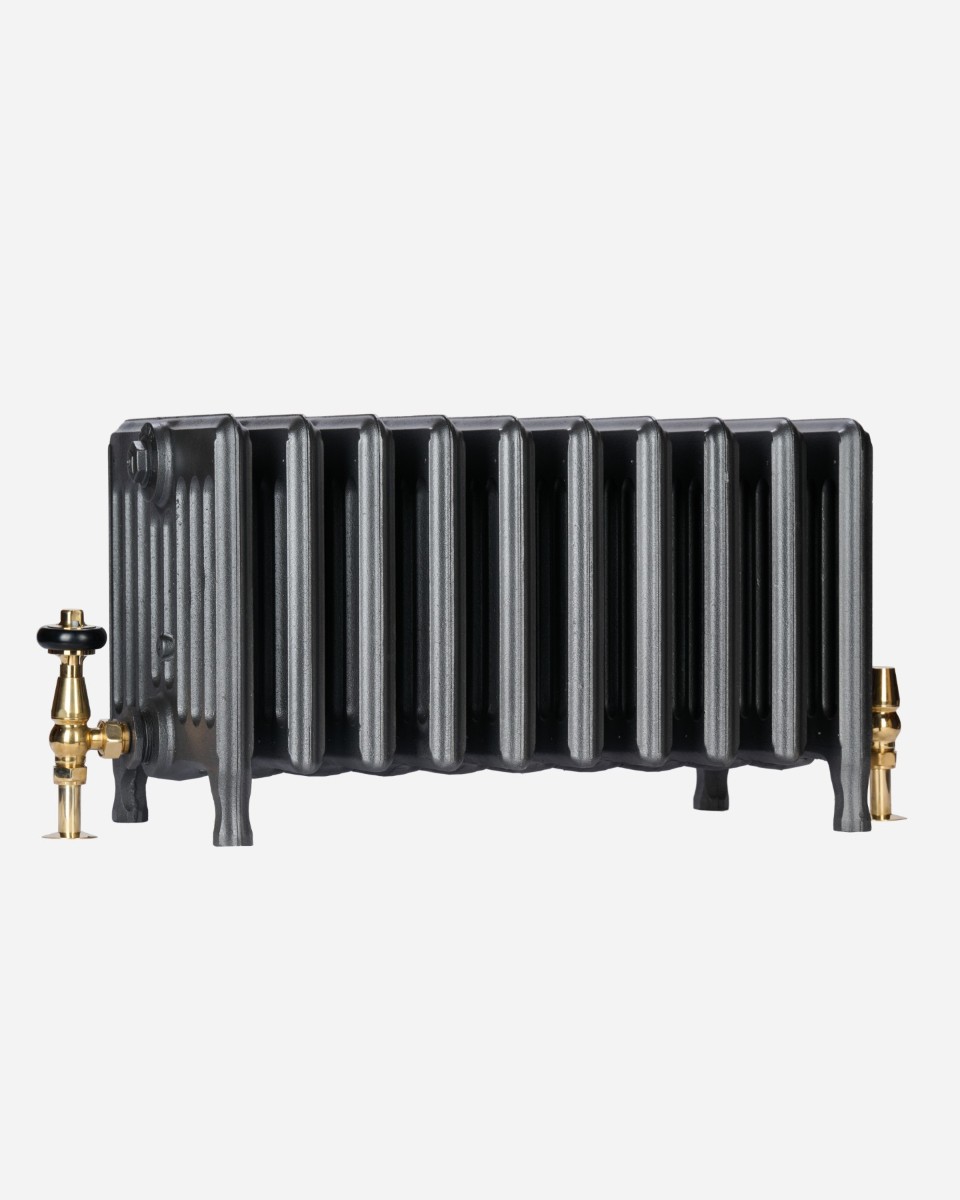

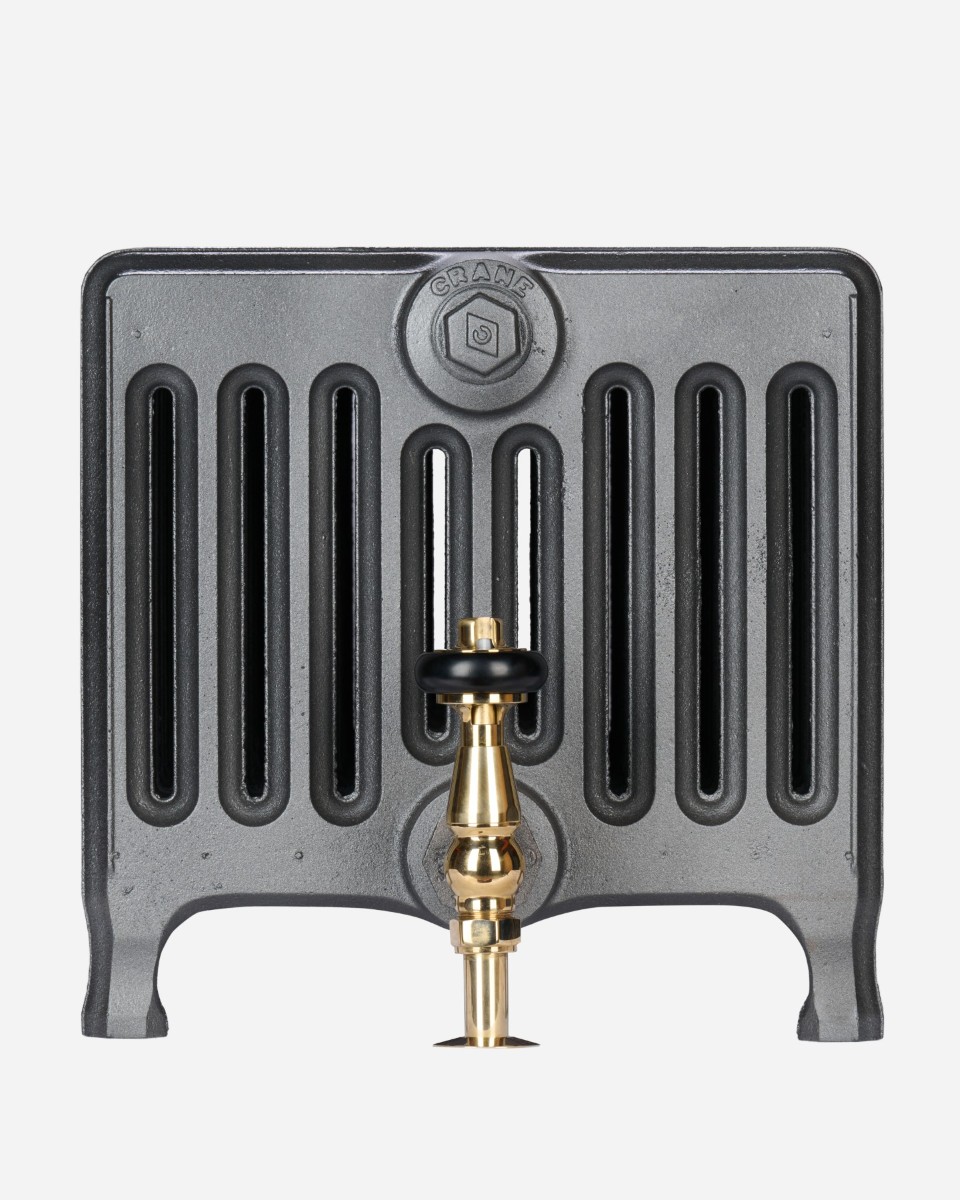

Pall Mall Wide 9 Column 13in
£954.00 – £1,242.00
Manufactured by Crane in Ipswich, England, from the early 1900s throughout the 20th century. The Pall Mall was Crane’s most popular Edwardian column radiator and a staple in many British homes and public buildings.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.2767 |
| Factor, Km | 0.52298 |
| Height With Legs (mm) | 330 |
| Height Without Legs (mm) | 270 |
| Bottom Inlet To Floor (mm) | 76 |
| Max Section Depth (mm) | 333 |
| Mid Section Depth (mm) | 333 |
| Output (ΔT50, W) | 77 |
| Output (ΔT30, W) | 40 |
| Interaxis Distance (mm) | 219 |
| Section Length (mm) | 57 |
| Internal Volume (L) | 1.1 |
| Empty Leg Section Weight (kg) | 7.2 |
| Empty Mid Section Weight (kg) | 6.5 |
| Casting Origin | Ipswich, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-C-PMW-9C13-10 | 10 | 600 | 770 | 400 | 1 | £0.00 |
| ORC-C-PMW-9C13-12 | 12 | 714 | 924 | 480 | 1 | £0.00 |
| ORC-C-PMW-9C13-22 | 22 | 1284 | 1694 | 880 | 1 | £0.00 |
