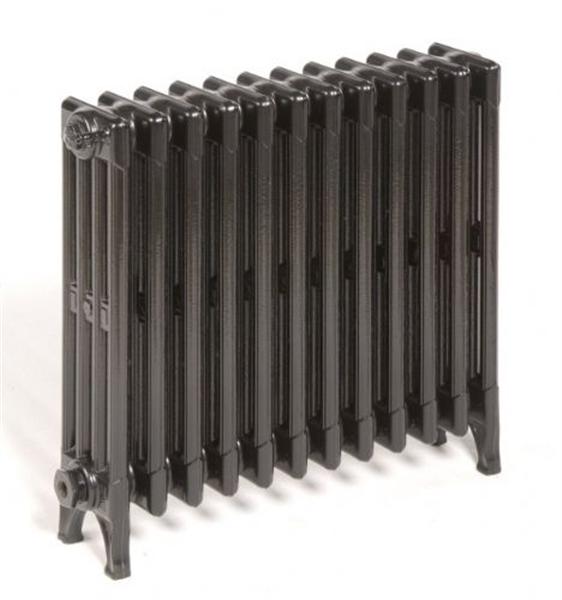

Ideal Classic 4 Column 18in
£636.00 – £1,123.20
The Ideal Classic, introduced by the National Radiator Company, was one of the first column radiators designed in Britain. Hugely popular across Europe, it remained a staple in homes and public buildings until it was superseded by the Neo-Classic model in the 1930s.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.2262 |
| Factor, Km | 0.4792625 |
| Height With Legs (mm) | 457 |
| Height Without Legs (mm) | 391 |
| Bottom Inlet To Floor (mm) | 102 |
| Max Section Depth (mm) | 143 |
| Mid Section Depth (mm) | 143 |
| Output (ΔT50, W) | 58 |
| Output (ΔT30, W) | 30 |
| Interaxis Distance (mm) | 319 |
| Section Length (mm) | 51 |
| Internal Volume (L) | 0.6 |
| Empty Leg Section Weight (kg) | 4.4 |
| Empty Mid Section Weight (kg) | 3.7 |
| Casting Origin | Hull, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-NRC-C-4C18-5 | 5 | 285 | 290 | 150 | 1 | £0.00 |
| ORC-NRC-C-4C18-6 | 6 | 336 | 348 | 180 | 1 | £0.00 |
| ORC-NRC-C-4C18-7 | 7 | 387 | 406 | 210 | 1 | £0.00 |
| ORC-NRC-C-4C18-8 | 8 | 438 | 464 | 240 | 1 | £0.00 |
| ORC-NRC-C-4C18-11 | 11 | 591 | 638 | 330 | 1 | £0.00 |
| ORC-NRC-C-4C18-12 | 12 | 642 | 696 | 360 | 1 | £0.00 |
| ORC-NRC-C-4C18-34 | 34 | 1764 | 1972 | 1020 | 1 | £0.00 |
