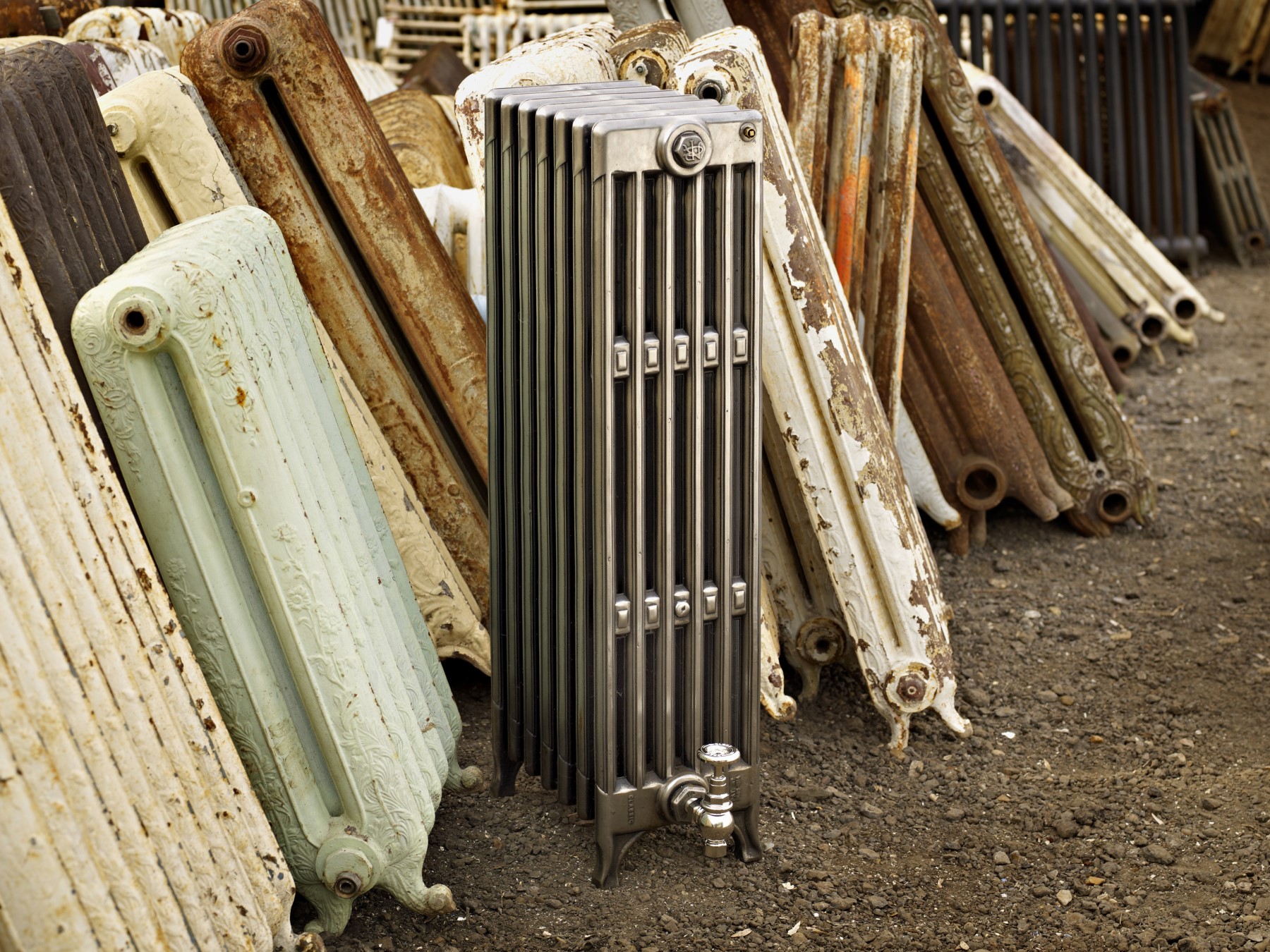

Ideal Classic 6 Column 36in
£873.60 – £1,154.40
The Ideal Classic, introduced by the National Radiator Company, was one of the first column radiators designed in Britain. Hugely popular across Europe, it remained a staple in homes and public buildings until it was superseded by the Neo-Classic model in the 1930s.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.3384 |
| Factor, Km | 0.8941 |
| Height With Legs (mm) | 914 |
| Height Without Legs (mm) | 848 |
| Bottom Inlet To Floor (mm) | 102 |
| Max Section Depth (mm) | 219 |
| Mid Section Depth (mm) | 219 |
| Output (ΔT50, W) | 168 |
| Output (ΔT30, W) | 87 |
| Interaxis Distance (mm) | 776 |
| Section Length (mm) | 51 |
| Internal Volume (L) | 1.5 |
| Empty Leg Section Weight (kg) | 12 |
| Empty Mid Section Weight (kg) | 11.3 |
| Casting Origin | Hull, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-NRC-C-6C36-3 | 3 | 183 | 504 | 261 | 1 | £0.00 |
| ORC-NRC-C-6C36-4 | 4 | 234 | 672 | 348 | 1 | £0.00 |
| ORC-NRC-C-6C36-5 | 5 | 285 | 840 | 435 | 1 | £0.00 |
| ORC-NRC-C-6C36-6 | 6 | 336 | 1008 | 522 | 1 | £0.00 |
| ORC-NRC-C-6C36-7 | 7 | 387 | 1176 | 609 | 1 | £0.00 |
| ORC-NRC-C-6C36-8 | 8 | 438 | 1344 | 696 | 1 | £0.00 |
| ORC-NRC-C-6C36-9 | 9 | 489 | 1512 | 783 | 1 | £0.00 |
| ORC-NRC-C-6C36-10 | 10 | 540 | 1680 | 870 | 1 | £0.00 |
| ORC-NRC-C-6C36-12 | 12 | 642 | 2016 | 1044 | 1 | £0.00 |
