National 1 Column 26in
£996.00 – £1,140.00

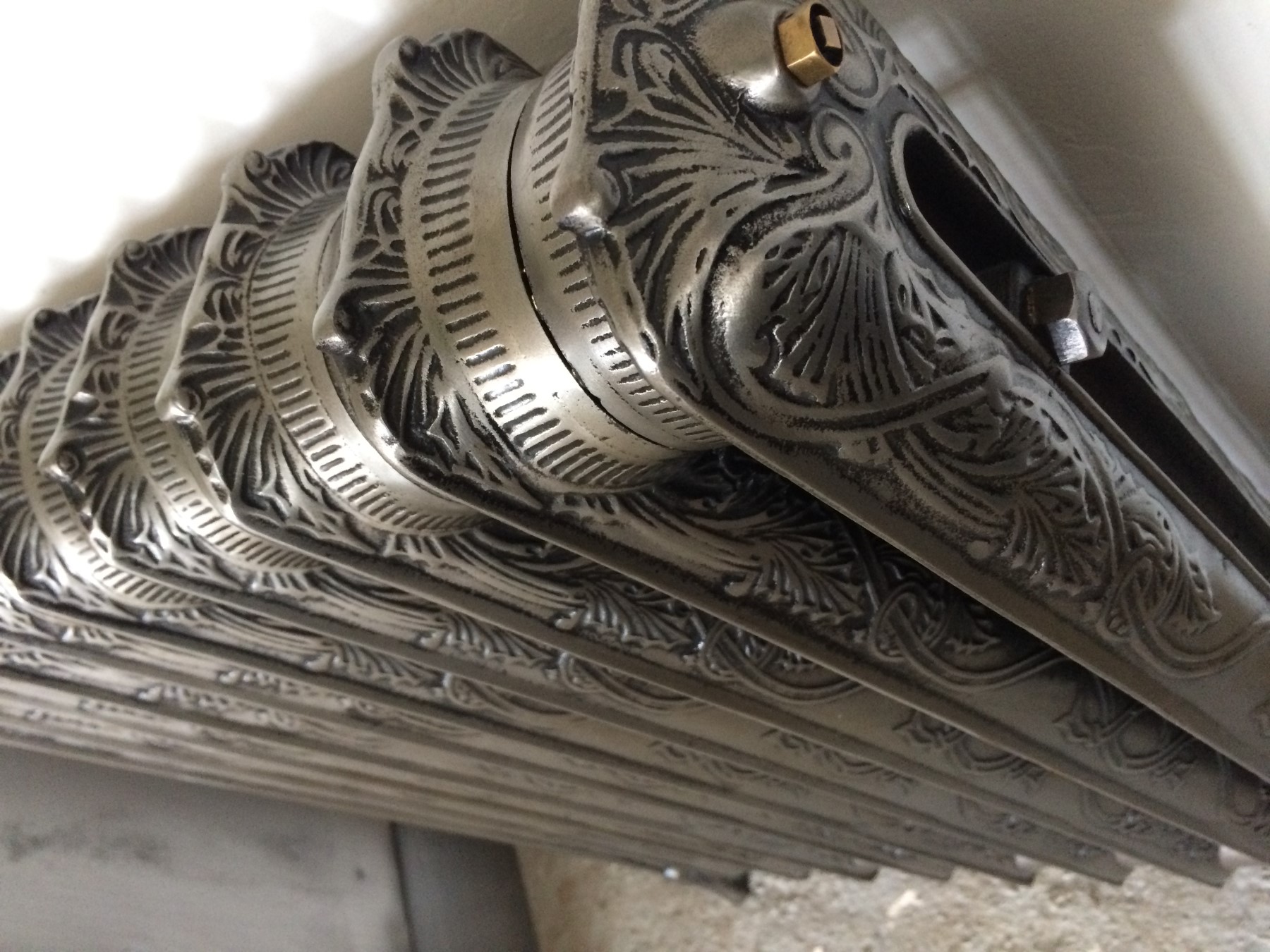

Manufactured by the American Radiator Company from the 1890s, the National radiator became one of the most popular ornate designs across the UK and US, known for its intricate detailing and widespread use.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.57 |
| Height With Legs (mm) | 660 |
| Height Without Legs (mm) | 609 |
| Bottom Inlet To Floor (mm) | 114 |
| Max Section Depth (mm) | 140 |
| Mid Section Depth (mm) | 114 |
| Output (ΔT50, W) | 76 |
| Output (ΔT30, W) | 39 |
| Interaxis Distance (mm) | 495 |
| Section Length (mm) | 64 |
| Internal Volume (L) | 1.1 |
| Empty Leg Section Weight (kg) | 6.7 |
| Empty Mid Section Weight (kg) | 6 |
| Casting Origin | Chicago, USA |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Conical nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-ARC-N26-5 | 5 | 350 | 380 | 195 | 1 | £0.00 |
| ORC-ARC-N26-6 | 6 | 414 | 456 | 234 | 1 | £0.00 |
| ORC-ARC-N26-10 | 10 | 670 | 760 | 390 | 1 | £0.00 |
