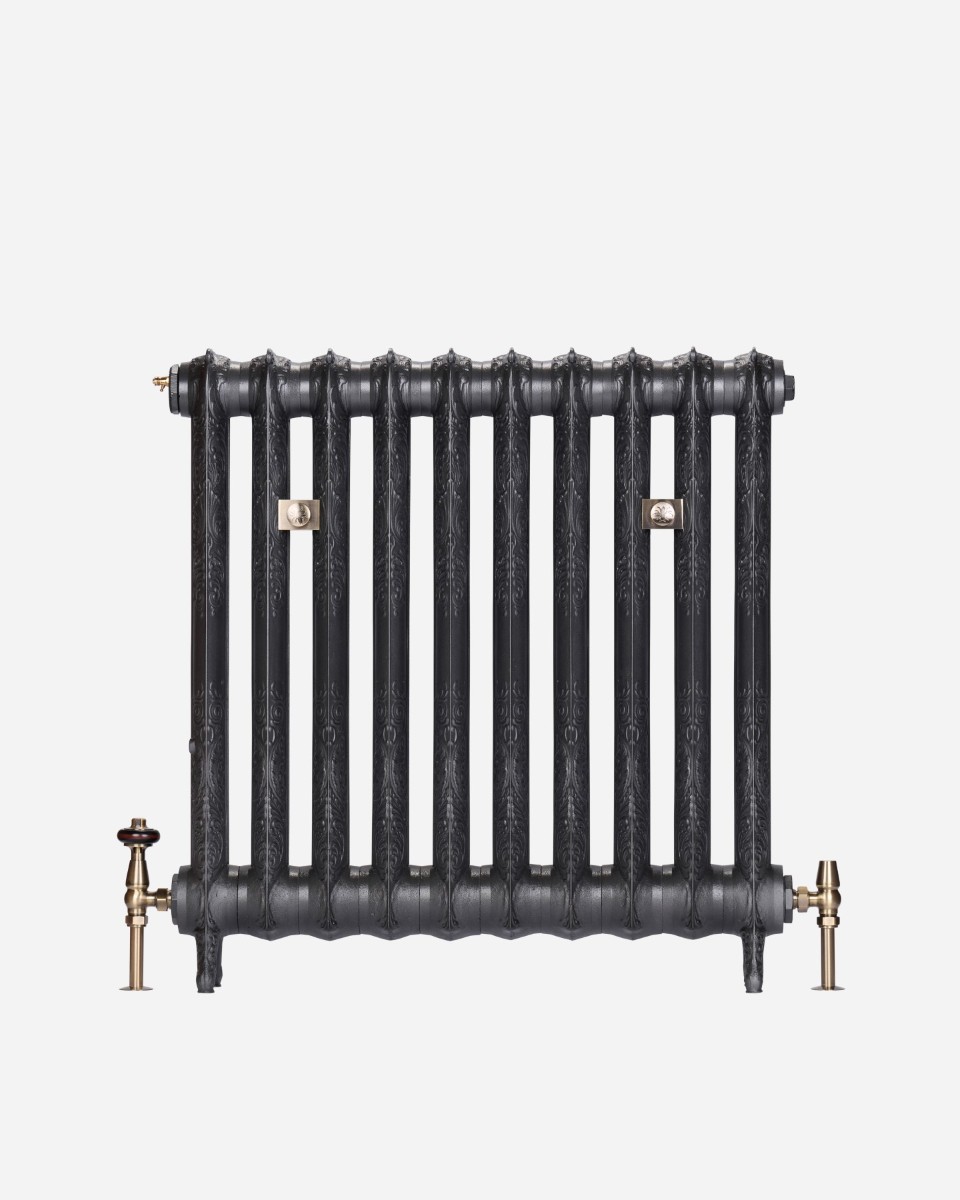

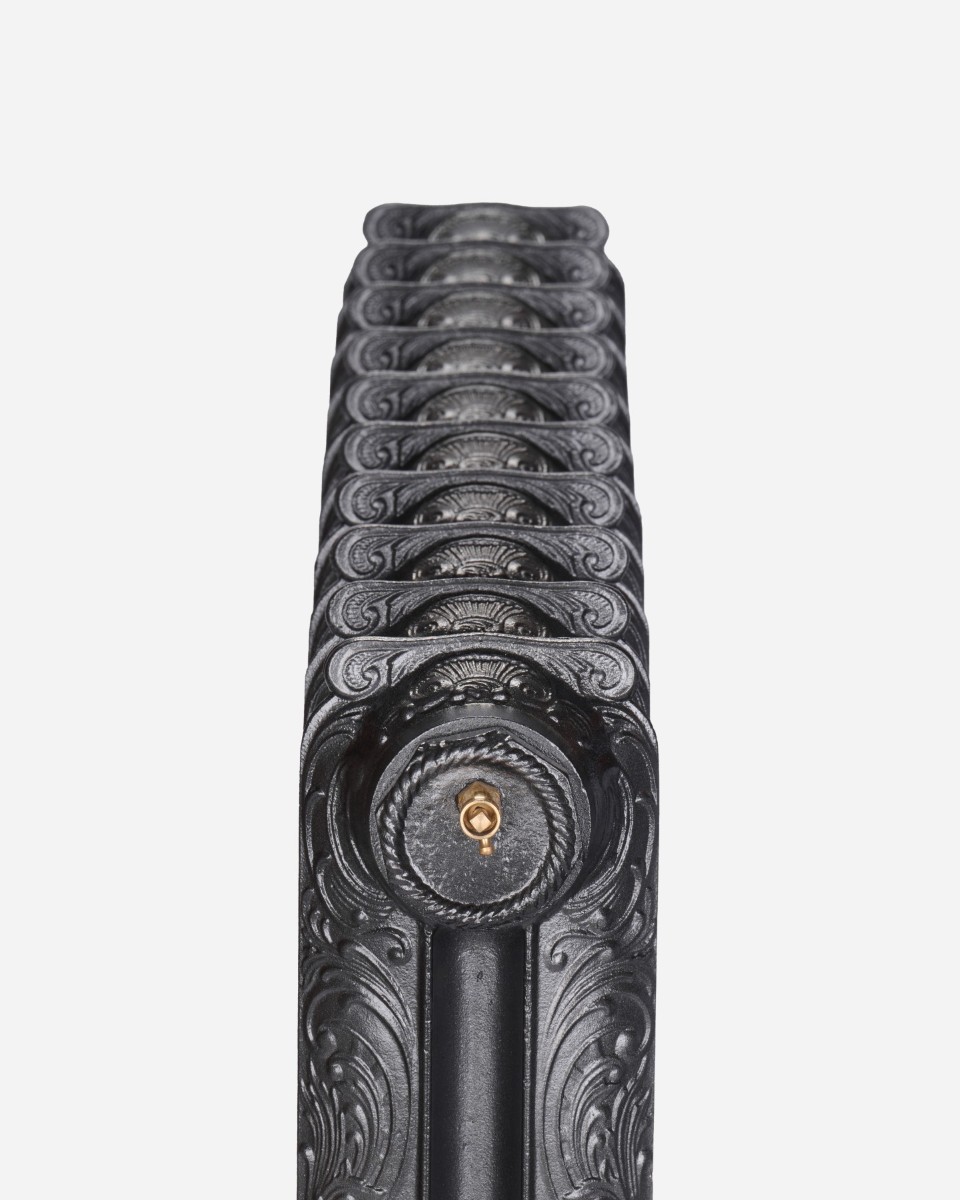

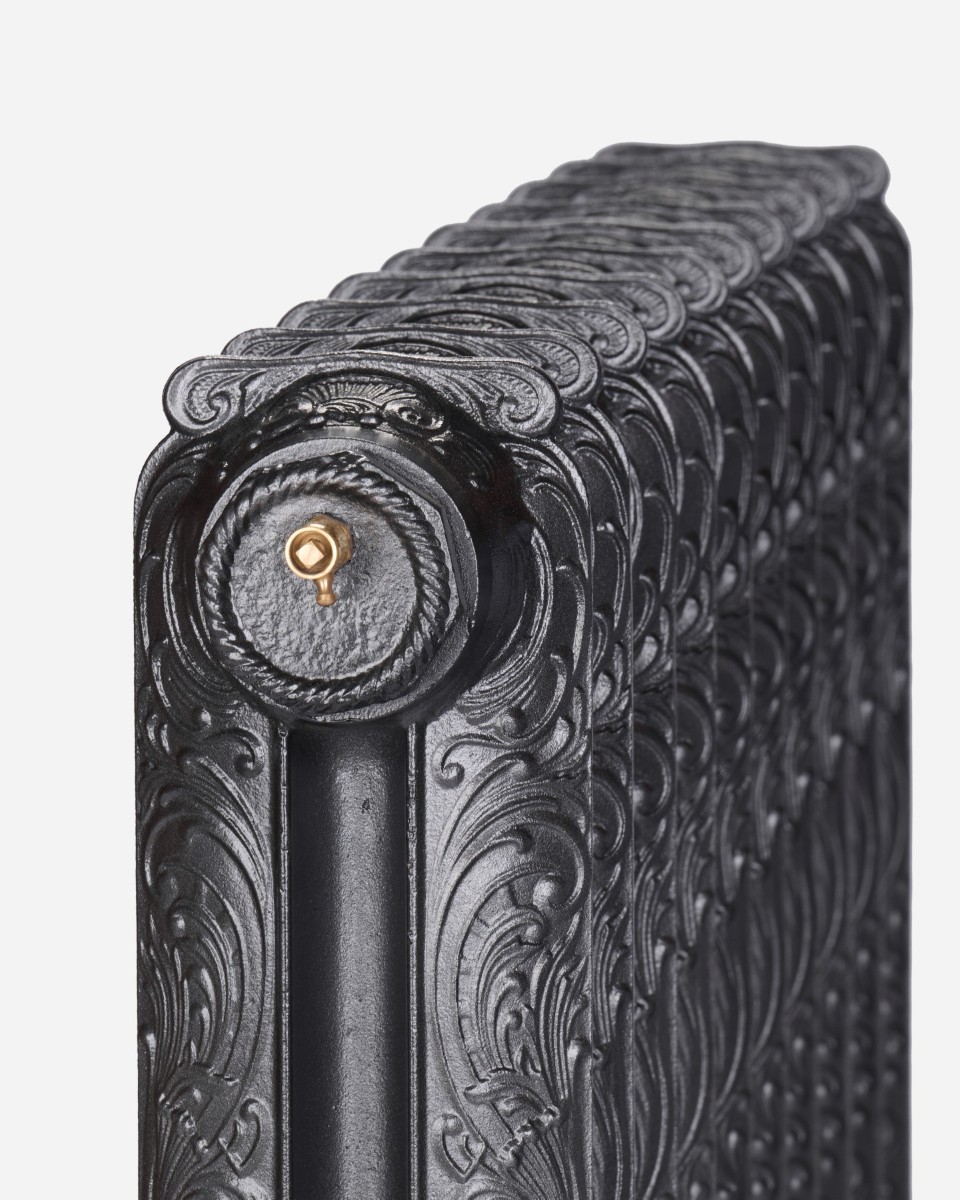

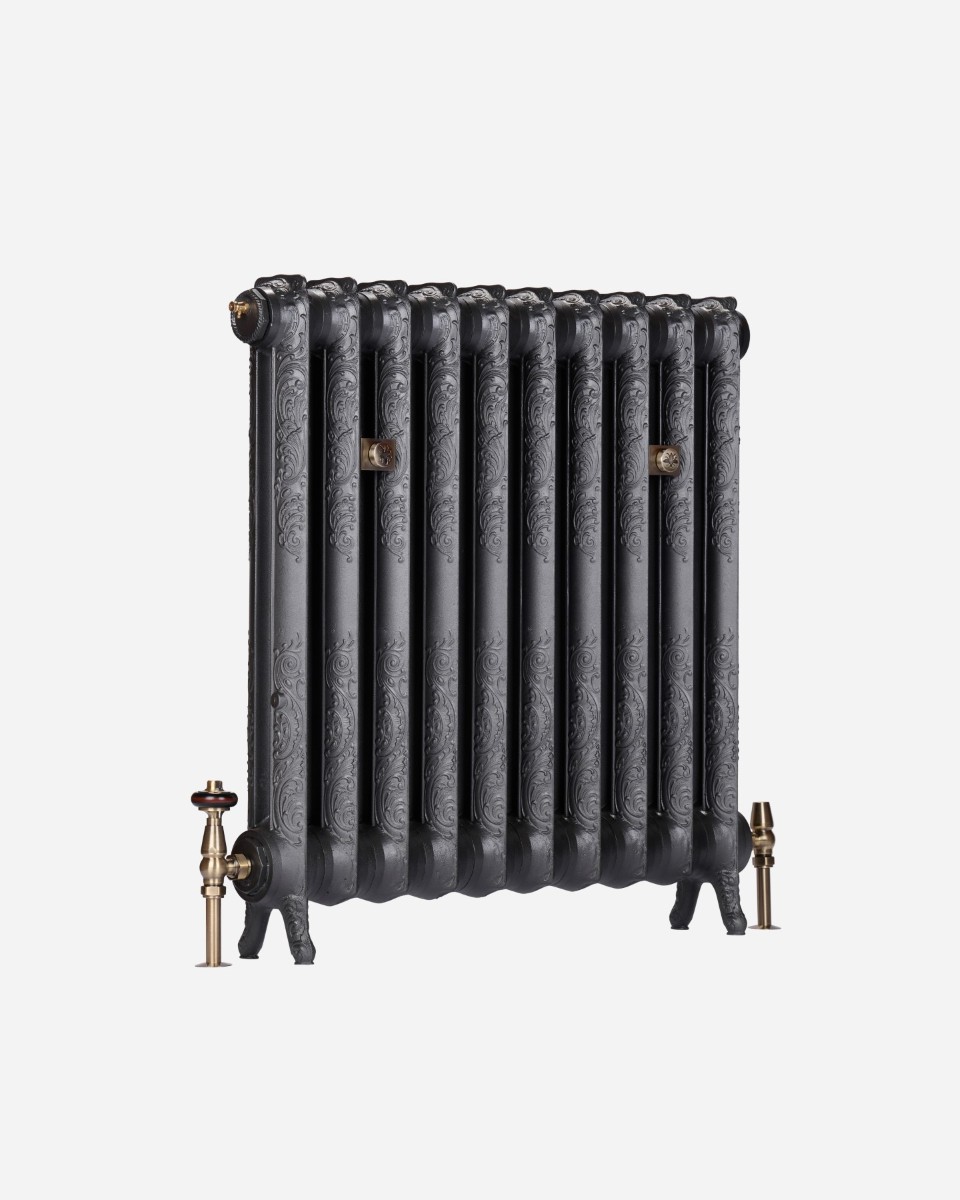

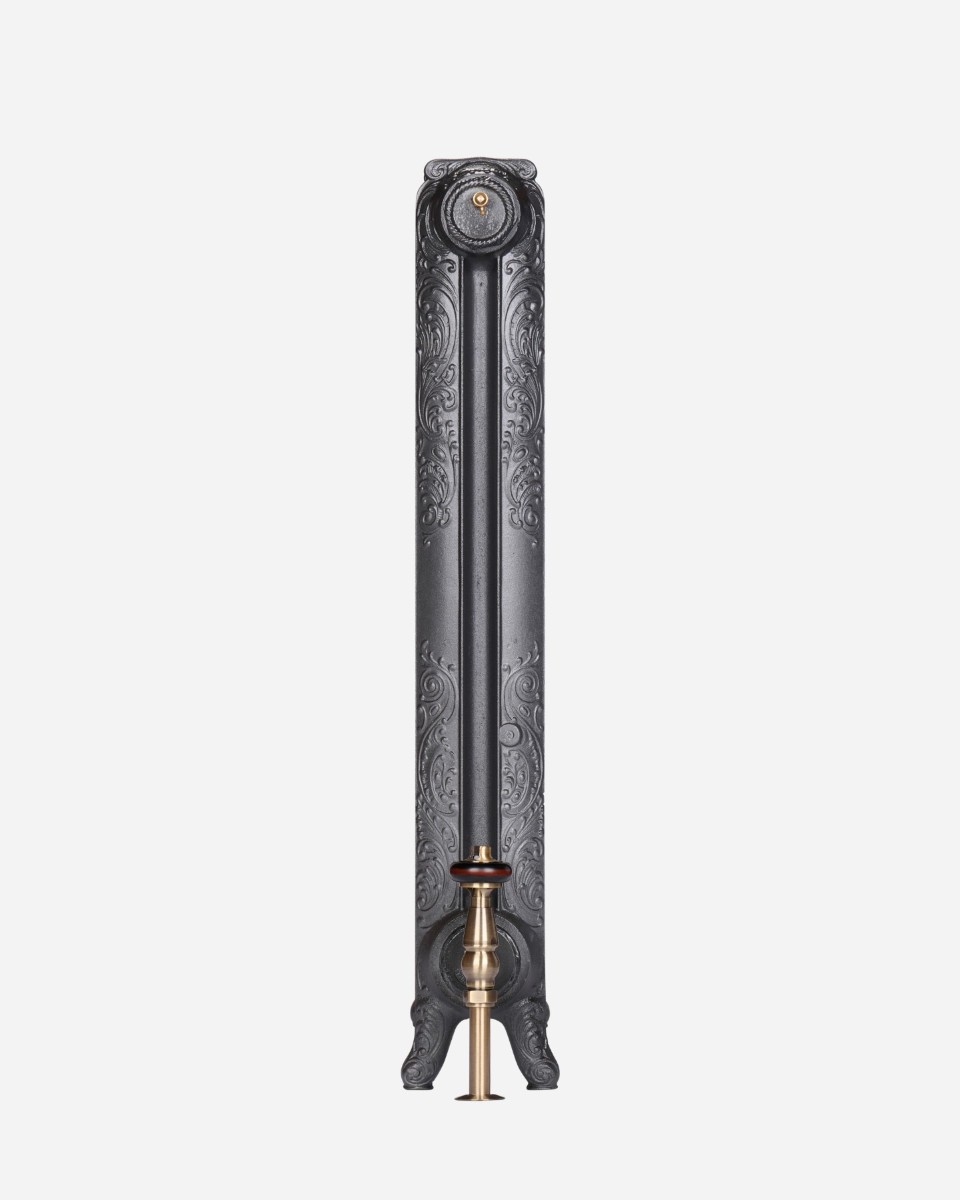

Rococo 1 Column Ornamental 32in
£1,314.00
Out of stock
Manufactured by the American Radiator Company from the 1890s to the 1920s, the Rococo is the most famous decorative radiator ever made, found in homes and public buildings throughout Europe and the US.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.64 |
| Height With Legs (mm) | 813 |
| Height Without Legs (mm) | 756 |
| Bottom Inlet To Floor (mm) | 114 |
| Max Section Depth (mm) | 140 |
| Mid Section Depth (mm) | 114 |
| Output (ΔT50, W) | 85 |
| Output (ΔT30, W) | 44 |
| Interaxis Distance (mm) | 640 |
| Section Length (mm) | 64 |
| Internal Volume (L) | 1.2 |
| Empty Leg Section Weight (kg) | 7.6 |
| Empty Mid Section Weight (kg) | 6.8 |
| Casting Origin | Chicago, USA |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-ARC-RO-32-10 | 10 | 670 | 850 | 440 | 1 | £0.00 |
