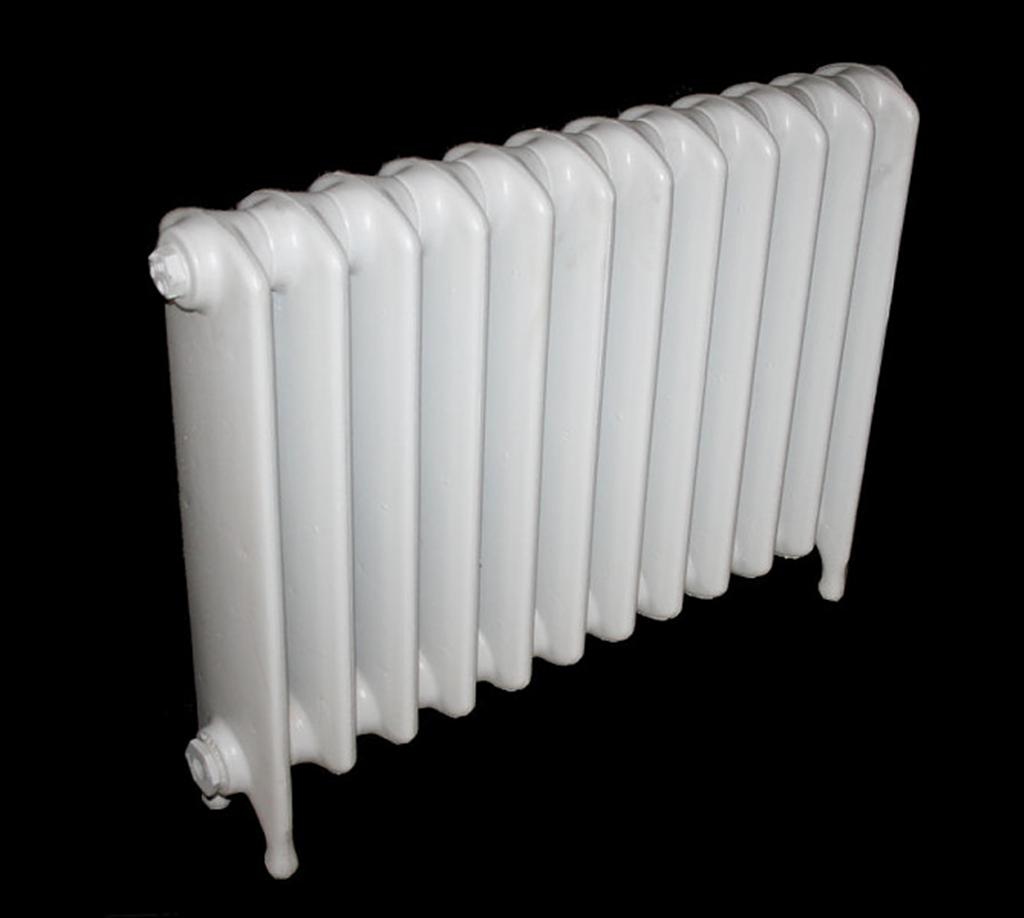

Neo Hospital 24in
£714.00
Produced by Ideal Standard from the mid to late 20th century, the Neo-Hospital was the company’s final design in their hospital radiator range, known for its durability and smoother curved top.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.65 |
| Height With Legs (mm) | 610 |
| Height Without Legs (mm) | 543 |
| Bottom Inlet To Floor (mm) | 100 |
| Max Section Depth (mm) | 146 |
| Mid Section Depth (mm) | 146 |
| Output (ΔT50, W) | 86 |
| Output (ΔT30, W) | 44 |
| Interaxis Distance (mm) | 472 |
| Section Length (mm) | 67 |
| Internal Volume (L) | 1.33 |
| Empty Leg Section Weight (kg) | 8.1 |
| Empty Mid Section Weight (kg) | 7.29 |
| Casting Origin | Hull, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-IS-H-S24-20 | 20 | 1370 | 1720 | 880 | 1 | £0.00 |
