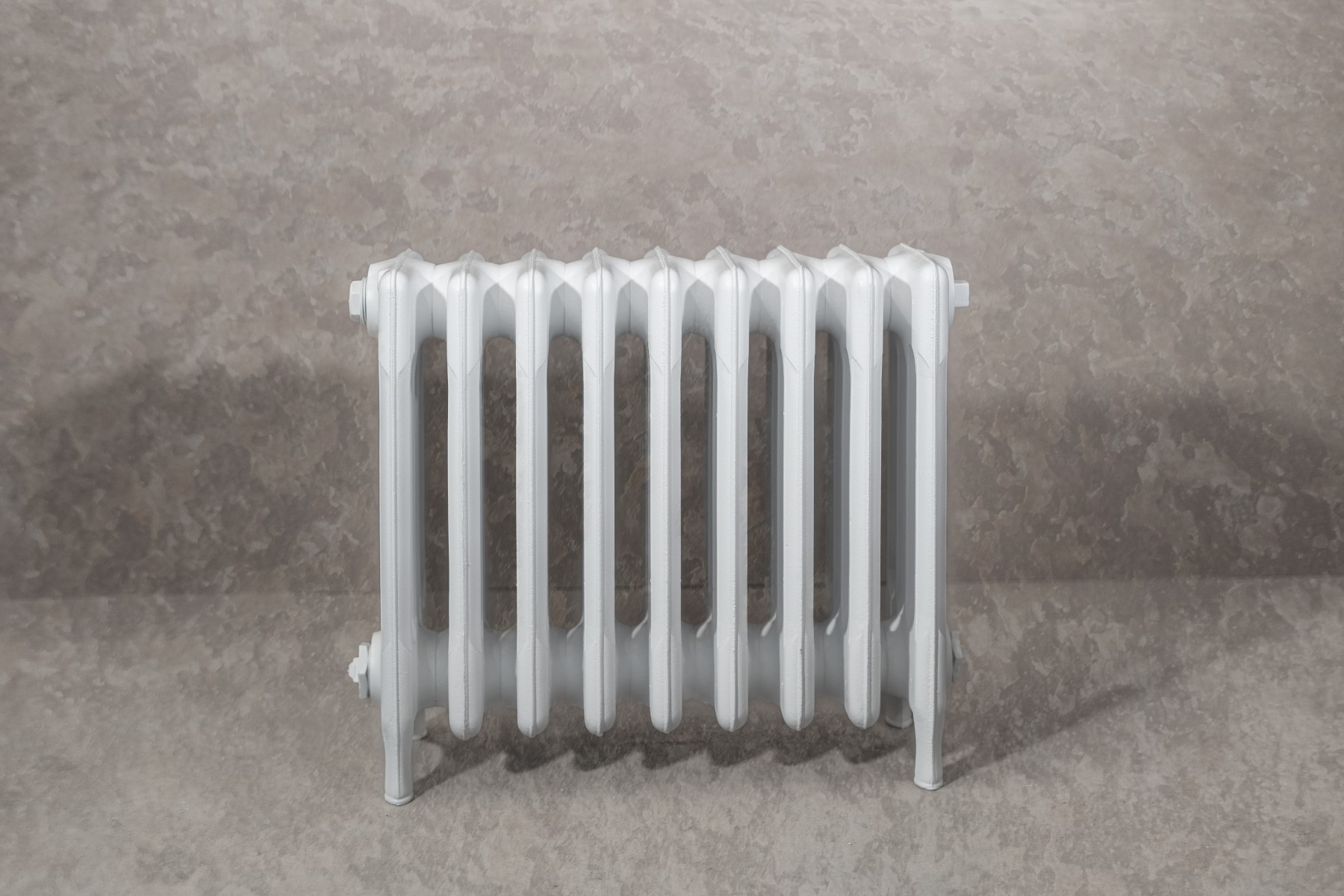

New Royal 4 Column 18in
£585.60
Out of stock
Manufactured by the Beeston Boiler Company from the 1930s onward, the New Royal radiator was a refined version of the earlier Royal design, similar in form to Ideal Standard’s Neo-Classic range.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.2262 |
| Factor, Km | 0.4788 |
| Height With Legs (mm) | 457 |
| Height Without Legs (mm) | 406 |
| Bottom Inlet To Floor (mm) | 89 |
| Max Section Depth (mm) | 191 |
| Mid Section Depth (mm) | 190 |
| Output (ΔT50, W) | 58 |
| Output (ΔT30, W) | 30 |
| Interaxis Distance (mm) | 335 |
| Section Length (mm) | 57 |
| Internal Volume (L) | 1.2 |
| Empty Leg Section Weight (kg) | 4.4 |
| Empty Mid Section Weight (kg) | 3.7 |
| Casting Origin | Nottingham, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-B-NR-4C18-9 | 9 | 543 | 522 | 270 | 1 | £0.00 |
