Church 26in
£1,082.40
Out of stock

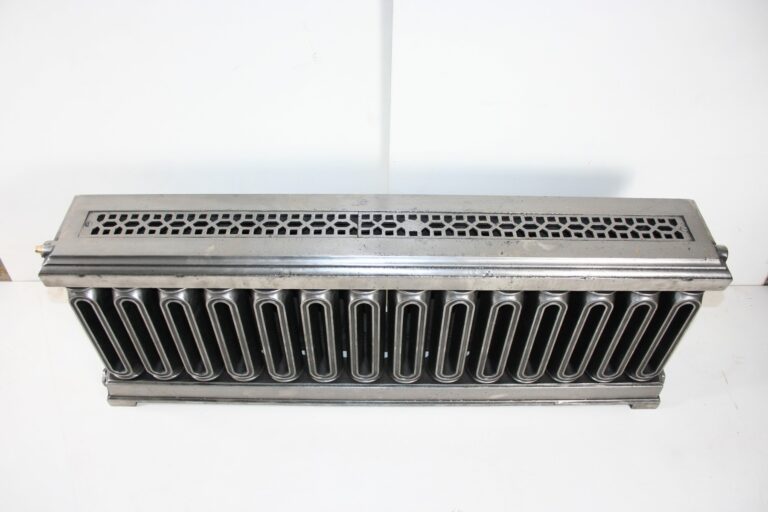

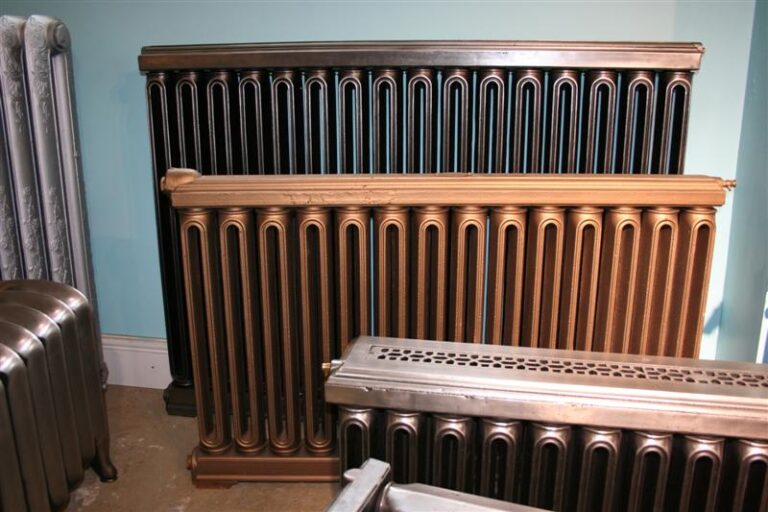

Church radiators, made by various British manufacturers in the mid to late 1800s, featured cast iron tubes plugged into a base, forming one of the earliest radiator types for large public spaces.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.68 |
| Height With Legs (mm) | 508 |
| Height Without Legs (mm) | 508 |
| Bottom Inlet To Floor (mm) | 32 |
| Max Section Depth (mm) | 102 |
| Mid Section Depth (mm) | 102 |
| Output (ΔT50, W) | 91 |
| Output (ΔT30, W) | 47 |
| Interaxis Distance (mm) | 0 |
| Section Length (mm) | 77 |
| Internal Volume (L) | 0.43 |
| Empty Leg Section Weight (kg) | 3.1 |
| Empty Mid Section Weight (kg) | 3.1 |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | "Manifold top, bottom" |
| Connection Options | BBOE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-C-26-8 | 8 | 646 | 728 | 376 | 1 | £0.00 |
