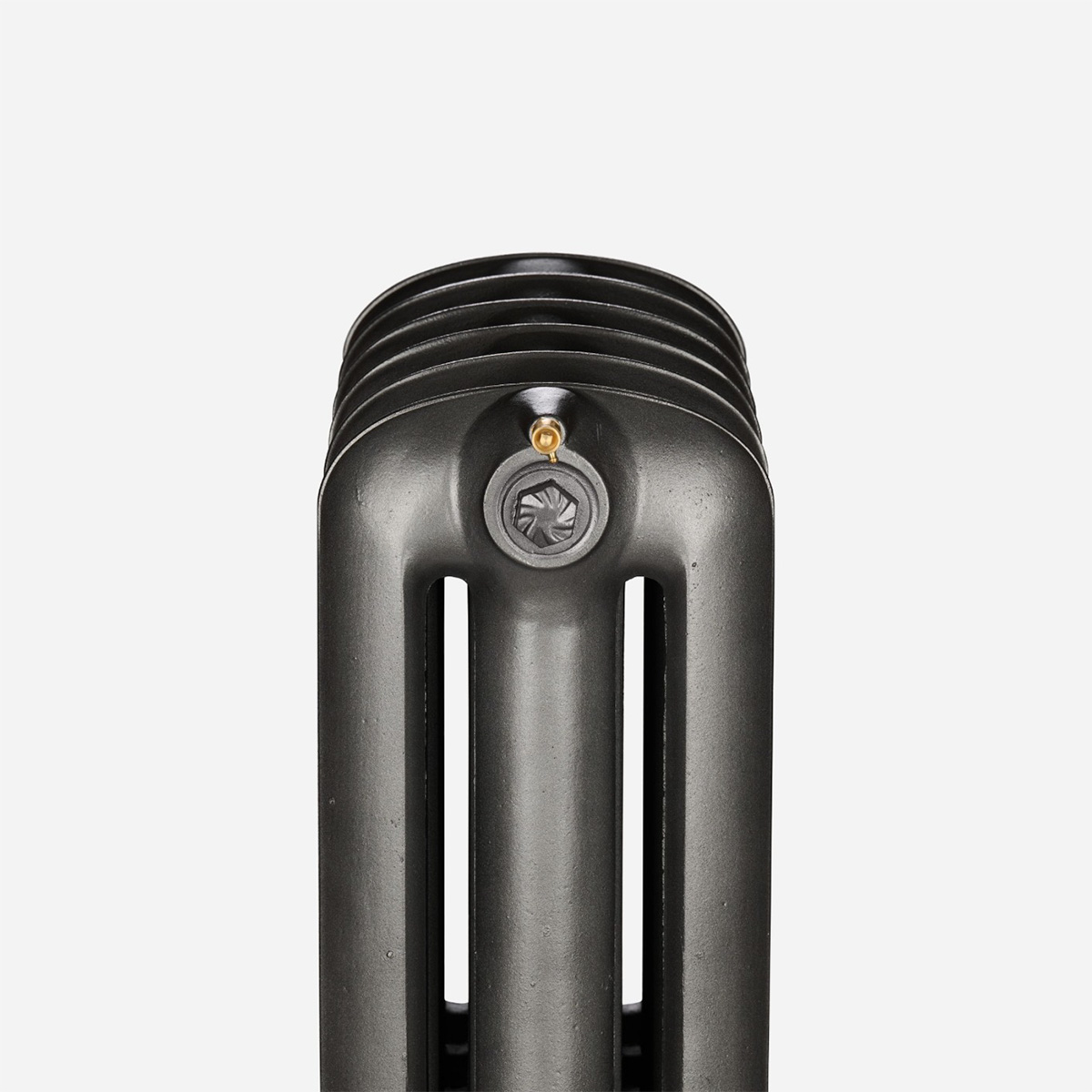

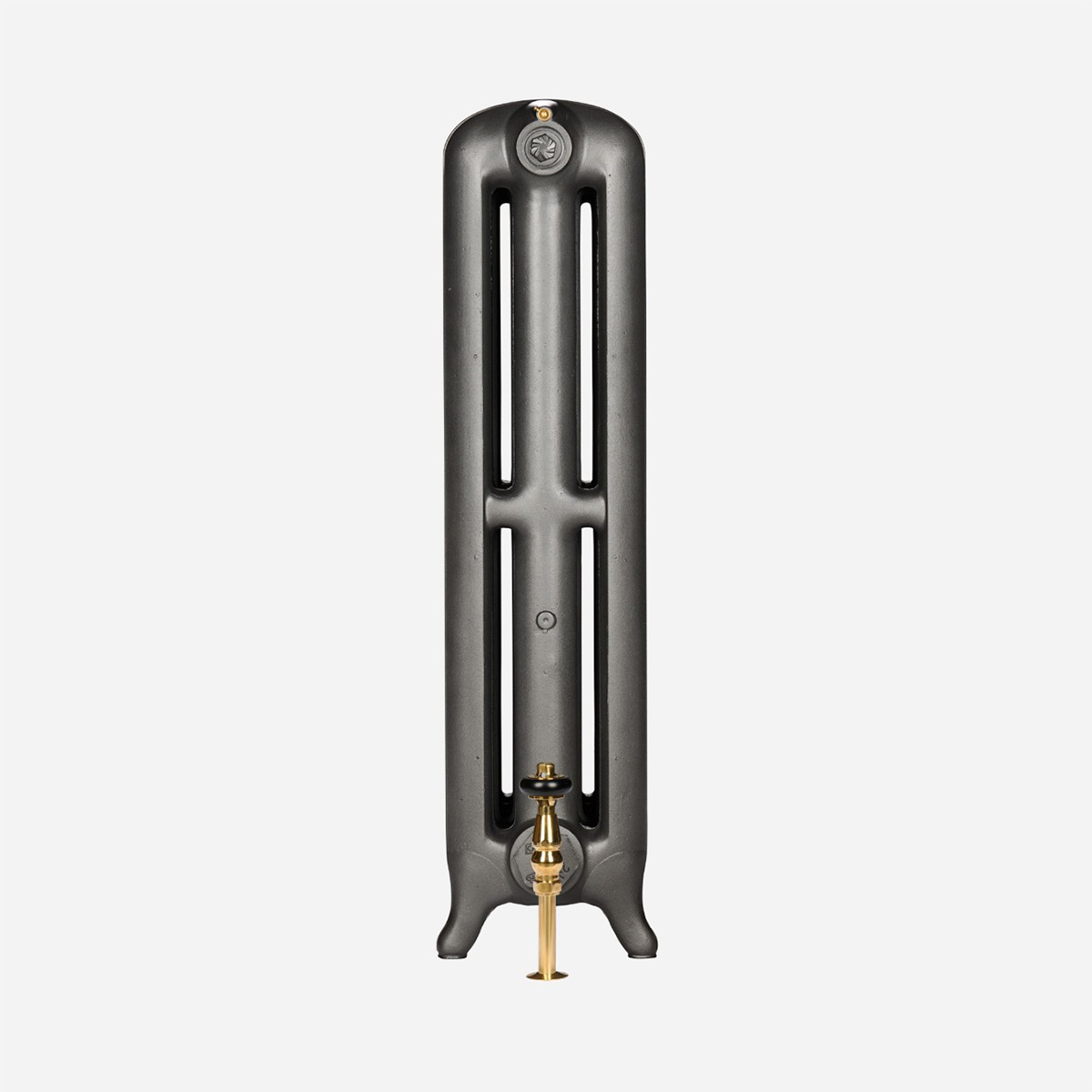

Peerless 3 Column 38in
£1,345.20 – £1,431.60
Manufactured by the American Radiator Company in the United States, from 1897 to the early 1920s. This radiator was part of the Peerless range – the first and most influential School radiator manufactured.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 1.17 |
| Height With Legs (mm) | 965 |
| Height Without Legs (mm) | 914 |
| Bottom Inlet To Floor (mm) | 114 |
| Max Section Depth (mm) | 254 |
| Mid Section Depth (mm) | 235 |
| Output (ΔT50, W) | 156 |
| Output (ΔT30, W) | 80 |
| Interaxis Distance (mm) | 790 |
| Section Length (mm) | 64 |
| Internal Volume (L) | 3.5 |
| Empty Leg Section Weight (kg) | 16 |
| Empty Mid Section Weight (kg) | 14.4 |
| Casting Origin | Chicago, USA |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Conical nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-ARC-P-3C38-6 | 6 | 414 | 936 | 480 | 1 | £0.00 |
| ORC-ARC-P-3C38-8 | 8 | 542 | 1248 | 640 | 1 | £0.00 |
