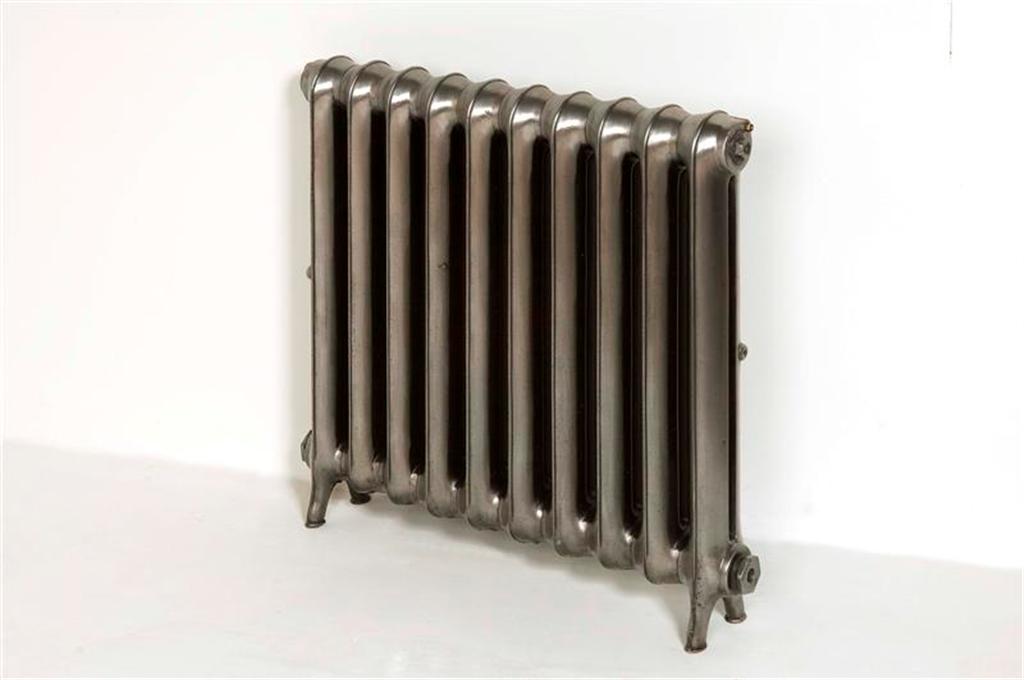

Princess 1 Column 24in
£1,370.40 – £1,543.20
One of Britain’s most iconic school radiators, the Princess was manufactured in Nottingham from the early 1900s. It became a familiar fixture in schools and libraries across the country until its discontinuation in the 1930s.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.2261 |
| Factor, Km | 0.58 |
| Height With Legs (mm) | 610 |
| Height Without Legs (mm) | 559 |
| Bottom Inlet To Floor (mm) | 102 |
| Max Section Depth (mm) | 143 |
| Mid Section Depth (mm) | 121 |
| Output (ΔT50, W) | 70 |
| Output (ΔT30, W) | 36 |
| Interaxis Distance (mm) | 463 |
| Section Length (mm) | 76 |
| Internal Volume (L) | 1 |
| Empty Leg Section Weight (kg) | 6.5 |
| Empty Mid Section Weight (kg) | 6.1 |
| Casting Origin | Nottingham, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-B-P24-18 | 18 | 1398 | 1260 | 648 | 1 | £0.00 |
| ORC-B-P24-24 | 24 | 1854 | 1680 | 864 | 1 | £0.00 |
