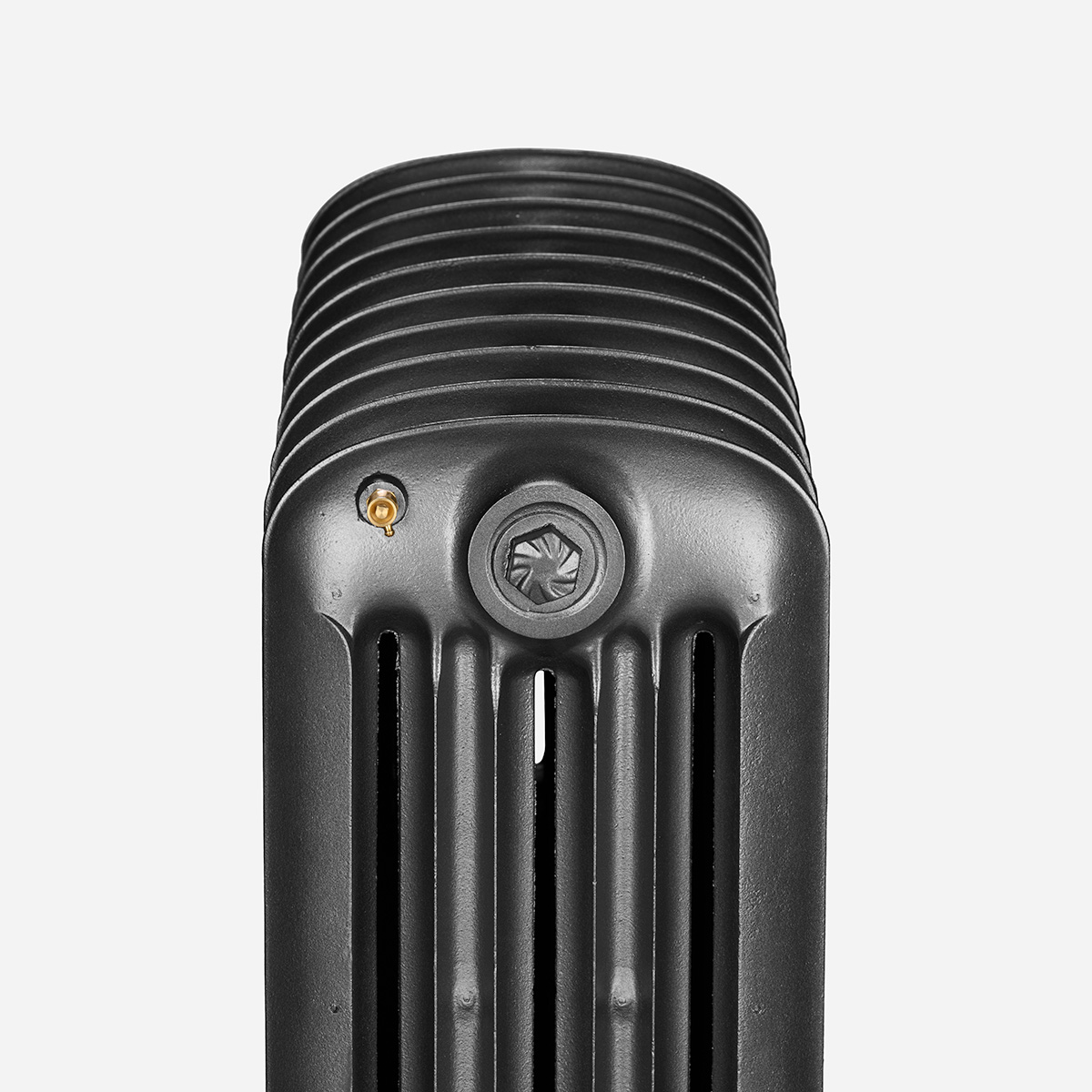

Ideal Plain 4 Column 32in
£1,258.80 – £2,079.60
Produced by the National Radiator Company from the early 1900s, the Ideal Plain is synonymous with British schools and libraries, earning its reputation as the quintessential “School Radiator.”
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Height With Legs (mm) | 813 |
| Height Without Legs (mm) | 756 |
| Bottom Inlet To Floor (mm) | 114 |
| Max Section Depth (mm) | 279 |
| Mid Section Depth (mm) | 267 |
| Output (ΔT50, W) | 224 |
| Output (ΔT30, W) | 115 |
| Interaxis Distance (mm) | 645 |
| Section Length (mm) | 76 |
| Internal Volume (L) | 3.6 |
| Empty Leg Section Weight (kg) | 15.8 |
| Empty Mid Section Weight (kg) | 14.2 |
| Factor, Km | N/A |
| Exponent, n | N/A |
| Casting Origin | Hull, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-NRC-IP-4C32-4 | 4 | 334 | 896 | 460 | 1 | £0.00 |
| ORC-NRC-IP-4C32-7 | 7 | 562 | 1568 | 805 | 1 | £0.00 |
| ORC-NRC-IP-4C32-8 | 8 | 638 | 1792 | 920 | 1 | £0.00 |
| ORC-NRC-IP-4C32-10 | 10 | 790 | 2240 | 1150 | 1 | £0.00 |
| ORC-NRC-IP-4C32-11 | 11 | 866 | 2464 | 1265 | 1 | £0.00 |
| ORC-NRC-IP-4C32-21 | 21 | 1626 | 4704 | 2415 | 1 | £0.00 |
| ORC-NRC-IP-4C32-23 | 23 | 1778 | 5152 | 2645 | 1 | £0.00 |
