Neo Hospital 18in – Primed
£540.00

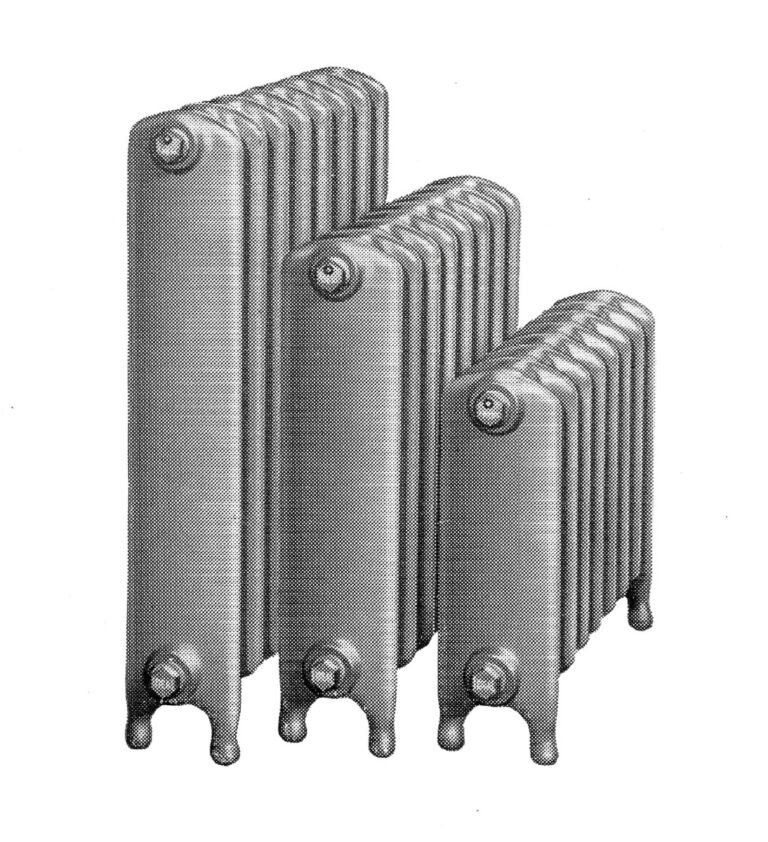

Produced by Ideal Standard from the mid to late 20th century, the Neo-Hospital was the company’s final design in their hospital radiator range, known for its durability and smoother curved top.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.

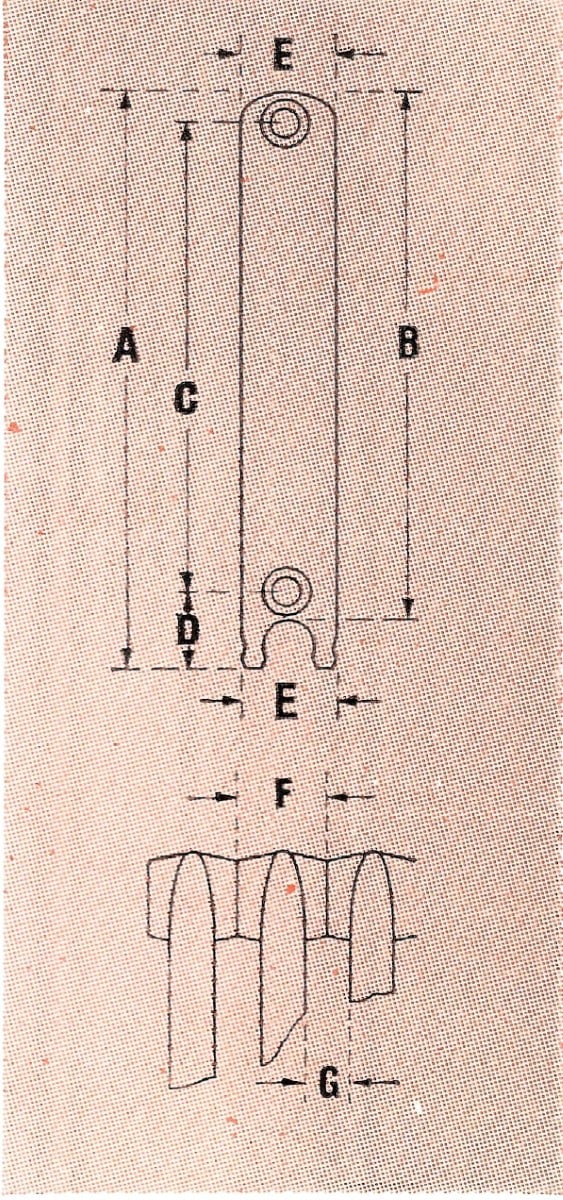

Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.48 |
| Height With Legs (mm) | 457 |
| Height Without Legs (mm) | 391 |
| Bottom Inlet To Floor (mm) | 102 |
| Max Section Depth (mm) | 146 |
| Mid Section Depth (mm) | 146 |
| Output (ΔT50, W) | 64 |
| Output (ΔT30, W) | 33 |
| Interaxis Distance (mm) | 319 |
| Section Length (mm) | 67 |
| Internal Volume (L) | 0.97 |
| Empty Leg Section Weight (kg) | 5 |
| Empty Mid Section Weight (kg) | 4.5 |
| Casting Origin | Hull, England |
| Heating Medium | Hydronic |
| Construction Types | Threaded nipples |
| Connection Options | BBOE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-IS-H-S18-PRI-10 | 10 | 700 | 640 | 330 | 1 | £0.00 |

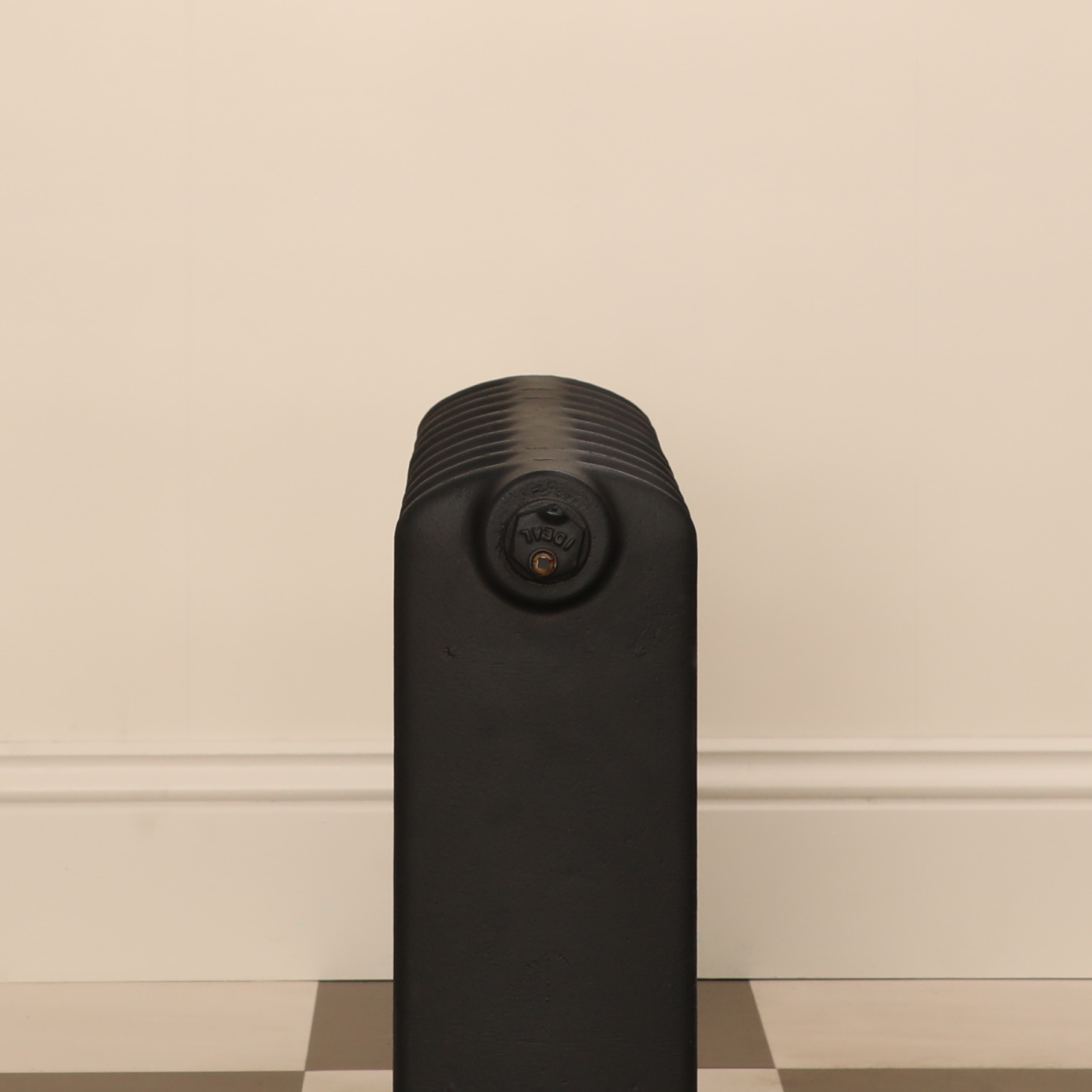

Primed Radiators – Ready For Your Perfect Finish
Our Primed Radiators are supplied fully assembled, pressure-tested, and base coated in a high-quality black or white primer, ready for your chosen finish.
All you need to do is pick your colour and accessories. Our Signature Collection includes versatile whites, greys and classic black which come at no additional cost, or contact out Sales team for more information about Farrow and Ball, Little Greene and Benjamin Moore finishes, among others.
By opting for a radiator that’s ready prepped and primed, we can get on with painting straight away and you’ll receive your order in around 3 weeks, about half the usual lead time.
