Neo Hospital Narrow 18in
£517.20 – £700.80

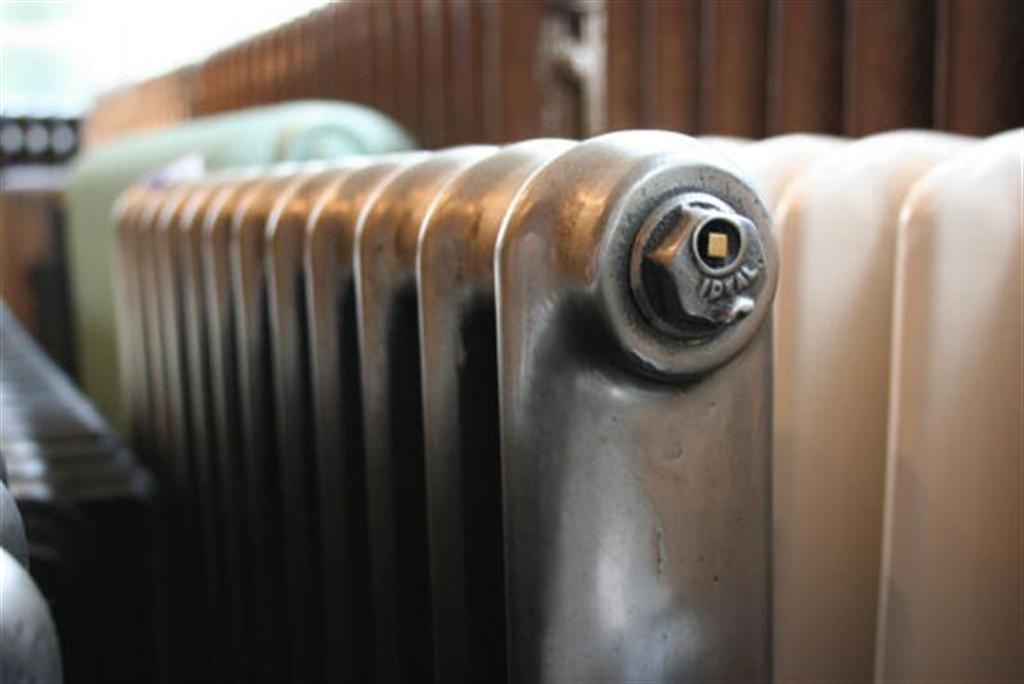

Produced by Ideal Standard from the mid to late 20th century, the Neo-Hospital was the company’s final design in their hospital radiator range, known for its durability and smoother curved top.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data

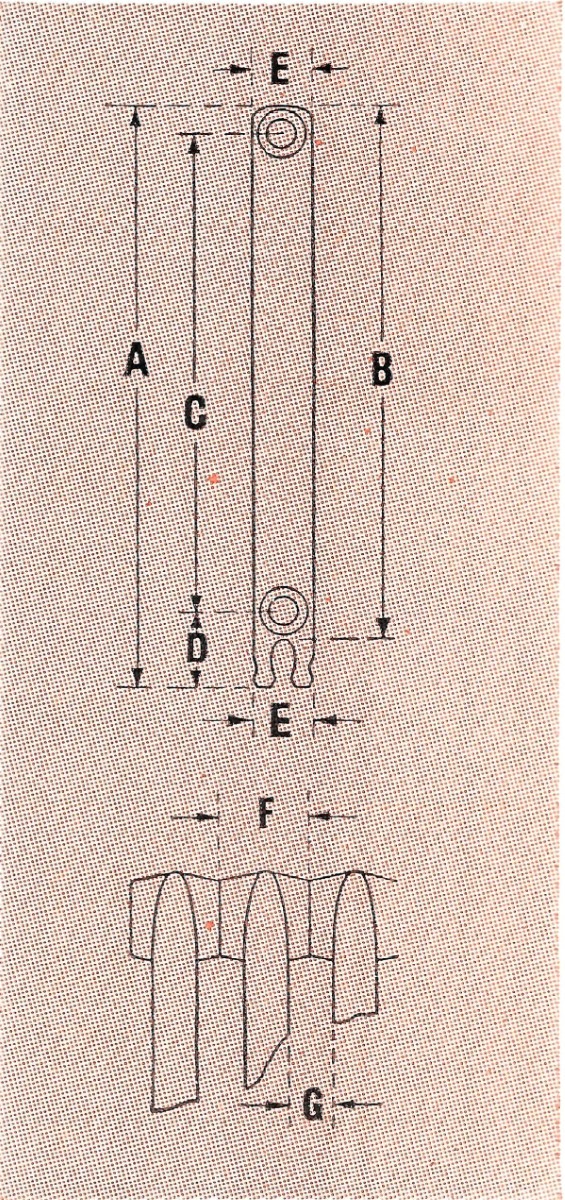

Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.24 |
| Height With Legs (mm) | 457 |
| Height Without Legs (mm) | 392 |
| Bottom Inlet To Floor (mm) | 102 |
| Max Section Depth (mm) | 76 |
| Mid Section Depth (mm) | 76 |
| Output (ΔT50, W) | 32 |
| Output (ΔT30, W) | 16 |
| Interaxis Distance (mm) | 319 |
| Section Length (mm) | 51 |
| Internal Volume (L) | 0.4 |
| Empty Leg Section Weight (kg) | 3 |
| Empty Mid Section Weight (kg) | 2.7 |
| Casting Origin | Hull, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-IS-H-N18-9 | 9 | 489 | 288 | 144 | 1 | £0.00 |
| ORC-IS-H-N18-22 | 22 | 1152 | 704 | 352 | 1 | £0.00 |
| ORC-IS-H-N18-24 | 24 | 1254 | 768 | 384 | 1 | £0.00 |
| ORC-IS-H-N18-26 | 26 | 1356 | 832 | 416 | 1 | £0.00 |
