Princess Window 13in
£1,125.60 – £1,644.00

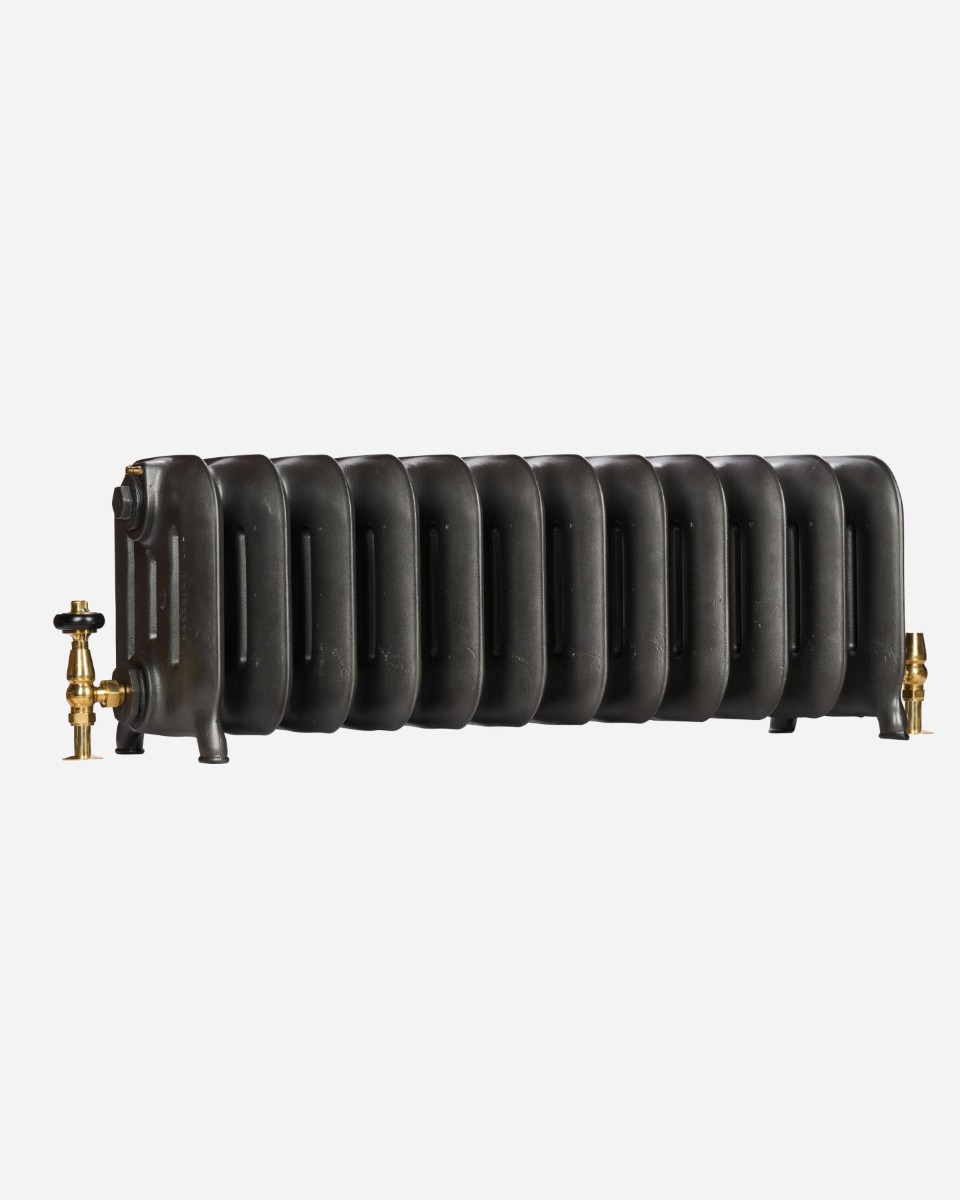

Part of Beeston’s renowned Princess range, this radiator was manufactured from the 1910s as a space-saving solution for heating tight areas, particularly bay windows, in schools and other public buildings.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.86 |
| Height With Legs (mm) | 330 |
| Height Without Legs (mm) | 305 |
| Bottom Inlet To Floor (mm) | 73 |
| Max Section Depth (mm) | 305 |
| Mid Section Depth (mm) | 305 |
| Output (ΔT50, W) | 115 |
| Output (ΔT30, W) | 59 |
| Interaxis Distance (mm) | 206 |
| Section Length (mm) | 76 |
| Internal Volume (L) | 2 |
| Empty Leg Section Weight (kg) | 6.7 |
| Empty Mid Section Weight (kg) | 6.03 |
| Casting Origin | Nottingham, England |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-B-P4C13-4 | 4 | 334 | 460 | 236 | 1 | £0.00 |
| ORC-B-P4C13-5 | 5 | 410 | 575 | 295 | 1 | £0.00 |
| ORC-B-P4C13-10 | 10 | 790 | 1150 | 590 | 1 | £0.00 |
| ORC-B-P4C13-11 | 11 | 866 | 1265 | 649 | 1 | £0.00 |
| ORC-B-P4C13-12 | 12 | 942 | 1380 | 708 | 1 | £0.00 |
| ORC-B-P4C13-15 | 15 | 1170 | 1725 | 885 | 1 | £0.00 |
| ORC-B-P4C13-16 | 16 | 1246 | 1840 | 944 | 1 | £0.00 |
| ORC-B-P4C13-17 | 17 | 1322 | 1955 | 1003 | 1 | £0.00 |
| ORC-B-P4C13-20 | 20 | 1550 | 2300 | 1180 | 1 | £0.00 |
