Rococo Window 13in
£1,158.00 – £1,255.20

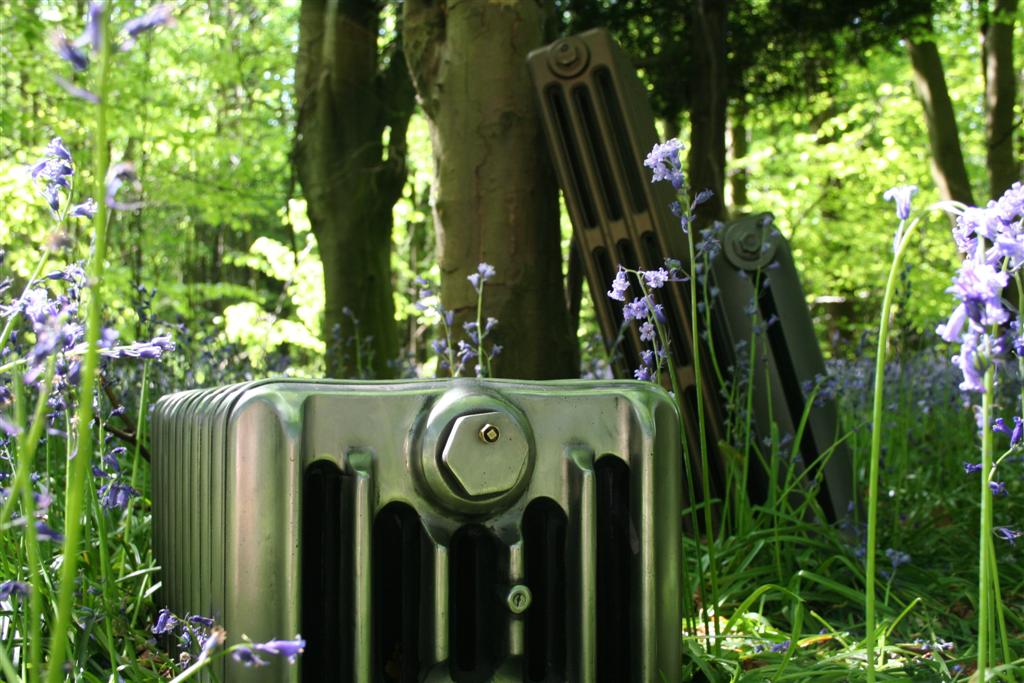

Produced by the American Radiator Company, the Rococo Window Radiator was a functional, non-ornate design intended for under-window heating. Popular across the US and UK, it was widely adopted in both countries during the early 20th century.
Premium branded paint finishes from Little Greene and Farrow & Ball are available on request. Please contact our Sales Team for more information.
Technical Data
Model Specifications
| Attribute | Value |
|---|---|
| Exponent, n | 1.25 |
| Factor, Km | 0.86 |
| Height With Legs (mm) | 330 |
| Height Without Legs (mm) | 305 |
| Bottom Inlet To Floor (mm) | 76 |
| Max Section Depth (mm) | 318 |
| Mid Section Depth (mm) | 318 |
| Output (ΔT50, W) | 114 |
| Output (ΔT30, W) | 59 |
| Interaxis Distance (mm) | 205 |
| Section Length (mm) | 76 |
| Internal Volume (L) | 2 |
| Empty Leg Section Weight (kg) | 6.7 |
| Empty Mid Section Weight (kg) | 6.03 |
| Casting Origin | Chicago, USA |
| Heating Medium | Hydronic, One-pipe steam, Two-pipe steam |
| Construction Types | Threaded nipples |
| Connection Options | BBOE, TBOE, TBSE |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| ORC-ARC-RW-13-5 | 5 | 410 | 570 | 295 | 1 | £0.00 |
| ORC-ARC-RW-13-8 | 8 | 638 | 912 | 472 | 1 | £0.00 |
